# 消费租赁项目 Kubernetes 基于 ELK 日志分析与实践
# 一、ELK 创建 Namespace 和 Secrets
# kubectl create ns logging
# kubectl create secret docker-registry harbor-admin -n logging --docker-server=registry.cn-hangzhou.aliyuncs.com --docker-username=xyapples@163.com --docker-password=passwd
# 二、交付 Zookeeper 集群至 K8S
# 2.1 制作 ZK 集群镜像
# 2.1.1 Dockerfile
# cat Dockerfile
FROM openjdk:8-jre
# 1、拷贝Zookeeper压缩包和配置文件
ENV VERSION=3.8.4
ADD ./apache-zookeeper-${VERSION}-bin.tar.gz /
ADD ./zoo.cfg /apache-zookeeper-${VERSION}-bin/conf
# 2、对Zookeeper文件夹名称重新命名
RUN mv /apache-zookeeper-${VERSION}-bin /zookeeper
# 3、拷贝eentrpoint的启动脚本文件
ADD ./entrypoint.sh /entrypoint.sh
# 4、暴露Zookeeper端口
EXPOSE 2181 2888 3888
# 5、执行启动脚本
CMD ["/bin/bash","/entrypoint.sh"]
# 2.1.2 zoo.cfg
# cat zoo.cfg
# 服务器之间或客户端与服务器之间维持心跳的时间间隔 tickTime以毫秒为单位。
tickTime={ZOOK_TICKTIME}
# 集群中的follower服务器(F)与leader服务器(L)之间的初始连接心跳数 10* tickTime
initLimit={ZOOK_INIT_LIMIT}
# 集群中的follower服务器与leader服务器之间请求和应答之间能容忍的最多心跳数 5 * tickTime
syncLimit={ZOOK_SYNC_LIMIT}
# 数据保存目录
dataDir={ZOOK_DATA_DIR}
# 日志保存目录
dataLogDir={ZOOK_LOG_DIR}
# 客户端连接端口
clientPort={ZOOK_CLIENT_PORT}
# 客户端最大连接数。# 根据自己实际情况设置，默认为60个
maxClientCnxns={ZOOK_MAX_CLIENT_CNXNS}
# 客户端获取 zookeeper 服务的当前状态及相关信息
4lw.commands.whitelist=*
# 三个接点配置，格式为： server.服务编号=服务地址、LF通信端口、选举端口
# 2.1.3 entrypoint
# cat entrypoint.sh
#设定变量
ZOOK_BIN_DIR=/zookeeper/bin
ZOOK_CONF_DIR=/zookeeper/conf/zoo.cfg
# 2、对配置文件中的字符串进行变量替换
sed -i s@{ZOOK_TICKTIME}@${ZOOK_TICKTIME:-2000}@g ${ZOOK_CONF_DIR}
sed -i s@{ZOOK_INIT_LIMIT}@${ZOOK_INIT_LIMIT:-10}@g ${ZOOK_CONF_DIR}
sed -i s@{ZOOK_SYNC_LIMIT}@${ZOOK_SYNC_LIMIT:-5}@g ${ZOOK_CONF_DIR}
sed -i s@{ZOOK_DATA_DIR}@${ZOOK_DATA_DIR:-/data}@g ${ZOOK_CONF_DIR}
sed -i s@{ZOOK_LOG_DIR}@${ZOOK_LOG_DIR:-/logs}@g ${ZOOK_CONF_DIR}
sed -i s@{ZOOK_CLIENT_PORT}@${ZOOK_CLIENT_PORT:-2181}@g ${ZOOK_CONF_DIR}
sed -i s@{ZOOK_MAX_CLIENT_CNXNS}@${ZOOK_MAX_CLIENT_CNXNS:-60}@g ${ZOOK_CONF_DIR}
# 3、准备ZK的集群节点地址，后期肯定是需要通过ENV的方式注入进来
for server in ${ZOOK_SERVERS}
do
echo ${server} >> ${ZOOK_CONF_DIR}
done
# 4、在datadir目录中创建myid的文件，并填入对应的编号
ZOOK_MYID=$(( $(hostname | sed 's#.*-##g') + 1 ))
echo ${ZOOK_MYID:-99} > ${ZOOK_DATA_DIR:-/data}/myid
#5、前台运行Zookeeper
cd ${ZOOK_BIN_DIR}
./zkServer.sh start-foreground
# 2.1.4 构建镜像并推送仓库
# wget https://dlcdn.apache.org/zookeeper/zookeeper-3.8.4/apache-zookeeper-3.8.4-bin.tar.gz
# docker build -t registry.cn-hangzhou.aliyuncs.com/kubernetes_public/zookeeper:3.8.4 .
# docker push registry.cn-hangzhou.aliyuncs.com/kubernetes_public/zookeeper:3.8.4
# 2.2 迁移 zookeeper 至 K8S
# 2.2.1 zookeeper-headless
# cat 01-zookeeper-headless.yaml
apiVersion: v1
kind: Service
metadata:
name: zookeeper-svc
namespace: logging
spec:
clusterIP: None
selector:
app: zookeeper
ports:
- name: client
port: 2181
targetPort: 2181
- name: leader-follwer
port: 2888
targetPort: 2888
- name: selection
port: 3888
targetPort: 3888
# 2.2.2 zookeeper-sts
[root@k8s-master01 01-zookeeper]# vim 02-zookeeper-sts.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: zookeeper
namespace: logging
spec:
serviceName: "zookeeper-svc"
replicas: 3
selector:
matchLabels:
app: zookeeper
template:
metadata:
labels:
app: zookeeper
spec:
affinity:
podAntiAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchExpressions:
- key: app
operator: In
values: ["zookeeper"]
topologyKey: "kubernetes.io/hostname"
imagePullSecrets:
- name: harbor-admin
containers:
- name: zookeeper
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/zookeeper:3.8.4
imagePullPolicy: Always
ports:
- name: client
containerPort: 2181
- name: leader-follwer
containerPort: 2888
- name: selection
containerPort: 3888
env:
- name: ZOOK_SERVERS
value: "server.1=zookeeper-0.zookeeper-svc.logging.svc.cluster.local:2888:3888 server.2=zookeeper-1.zookeeper-svc.logging.svc.cluster.local:2888:3888 server.3=zookeeper-2.zookeeper-svc.logging.svc.cluster.local:2888:3888"
readinessProbe: # 就绪探针，不就绪则不介入流量
exec:
command:
- "/bin/bash"
- "-c"
- '[[ "$(/zookeeper/bin/zkServer.sh status 2>/dev/null|grep 2181)" ]] && exit 0 || exit 1'
initialDelaySeconds: 5
livenessProbe: # 存活探针。如果不存活则根据重启策略进行重启
exec:
command:
- "/bin/bash"
- "-c"
- '[[ "$(/zookeeper/bin/zkServer.sh status 2>/dev/null|grep 2181)" ]] && exit 0 || exit 1'
initialDelaySeconds: 5
volumeMounts:
- name: data
mountPath: /data
subPath: data
- name: data
mountPath: /logs
subPath: logs
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
volumes:
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
type: ""
- name: timezone
hostPath:
path: /etc/timezone
type: ""
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes: ["ReadWriteMany"]
storageClassName: "nfs-storage"
resources:
requests:
storage: 5Gi
# 2.2.3 更新资源清单
[root@k8s-master01 01-zookeeper]# kubectl apply -f 01-zookeeper-headless.yaml
[root@k8s-master01 01-zookeeper]# kubectl apply -f 02-zookeeper-sts.yaml
[root@k8s-master01 01-zookeeper]# kubectl get pods -n logging
NAME READY STATUS RESTARTS AGE
zookeeper-0 1/1 Running 0 17m
zookeeper-1 1/1 Running 0 14m
zookeeper-2 1/1 Running 0 11m
# 2.2.4 检查 zookeeper 集群状态
# for i in 0 1 2 ; do kubectl exec zookeeper-$i -n logging -- /zookeeper/bin/zkServer.sh status; done
ZooKeeper JMX enabled by default
Using config: /zookeeper/bin/../conf/zoo.cfg
Client port found: 2181. Client address: localhost. Client SSL: false.
Mode: follower
ZooKeeper JMX enabled by default
Using config: /zookeeper/bin/../conf/zoo.cfg
Client port found: 2181. Client address: localhost. Client SSL: false.
Mode: leader
ZooKeeper JMX enabled by default
Using config: /zookeeper/bin/../conf/zoo.cfg
Client port found: 2181. Client address: localhost. Client SSL: false.
Mode: follower
# 2.2.5 连接 Zookeeper 集群
[root@k8s-master01 01-zookeeper]# kubectl exec -it zookeeper-0 -n logging -- /bin/sh
# /zookeeper/bin/zkCli.sh -server zookeeper-svc
[zk: zookeeper-svc(CONNECTED) 0] create /hello oldxu
Created /hello
[zk: zookeeper-svc(CONNECTED) 1] get /hello
oldxu
# 三、 交付 Kafka 集群至 K8S
# 3.1 制作 Kafka 集群镜像
# 3.1.1 Dockerfile
# cat Dockerfile
FROM openjdk:8-jre
# 1、调整时区
RUN /bin/cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && \
echo 'Asia/Shanghai' > /etc/timezone
# 2、拷贝kafka软件以及kafka的配置
ENV VERSION=2.12-2.2.0
ADD ./kafka_${VERSION}.tgz /
ADD ./server.properties /kafka_${VERSION}/config/server.properties
# 3、修改kafka的名称
RUN mv /kafka_${VERSION} /kafka
# 4、启动脚本（修改kafka配置）
ADD ./entrypoint.sh /entrypoint.sh
# 5、暴露kafka端口 9999是jmx的端口
EXPOSE 9092 9999
# 6、运行启动脚本
CMD ["/bin/bash","/entrypoint.sh"]
# 3.1.2 server.properties
# cat server.properties
############################# Server Basics #############################
# broker的id，值为整数，且必须唯一，在一个集群中不能重复
broker.id={BROKER_ID}
############################# Socket Server Settings #############################
# kafka监听端口，默认9092
listeners=PLAINTEXT://{LISTENERS}:9092
# 处理网络请求的线程数量，默认为3个
num.network.threads=3
# 执行磁盘IO操作的线程数量，默认为8个
num.io.threads=8
# socket服务发送数据的缓冲区大小，默认100KB
socket.send.buffer.bytes=102400
# socket服务接受数据的缓冲区大小，默认100KB
socket.receive.buffer.bytes=102400
# socket服务所能接受的一个请求的最大大小，默认为100M
socket.request.max.bytes=104857600
############################# Log Basics #############################
# kafka存储消息数据的目录
log.dirs={KAFKA_DATA_DIR}
# 每个topic默认的partition
num.partitions=1
# 设置副本数量为3,当Leader的Replication故障，会进行故障自动转移。
default.replication.factor=3
# 在启动时恢复数据和关闭时刷新数据时每个数据目录的线程数量
num.recovery.threads.per.data.dir=1
############################# Log Flush Policy #############################
# 消息刷新到磁盘中的消息条数阈值
log.flush.interval.messages=10000
# 消息刷新到磁盘中的最大时间间隔,1s
log.flush.interval.ms=1000
############################# Log Retention Policy #############################
# 日志保留小时数，超时会自动删除，默认为7天
log.retention.hours=168
# 日志保留大小，超出大小会自动删除，默认为1G
#log.retention.bytes=1073741824
# 日志分片策略，单个日志文件的大小最大为1G，超出后则创建一个新的日志文件
log.segment.bytes=1073741824
# 每隔多长时间检测数据是否达到删除条件,300s
log.retention.check.interval.ms=300000
############################# Zookeeper #############################
# Zookeeper连接信息，如果是zookeeper集群，则以逗号隔开
zookeeper.connect={ZOOK_SERVERS}
# 连接zookeeper的超时时间,6s
zookeeper.connection.timeout.ms=6000
# 3.1.3 entrypoint
# cat entrypoint.sh
# 变量
KAFKA_DIR=/kafka
KAFKA_CONF=/kafka/config/server.properties
# 1、基于主机名 + 1 获取Broker_id 这个是用来标识集群节点 在整个集群中必须唯一
BROKER_ID=$(( $(hostname | sed 's#.*-##g') + 1 ))
LISTENERS=$(hostname -i)
# 2、替换配置文件内容，后期ZK集群的地址通过ENV传递
sed -i s@{BROKER_ID}@${BROKER_ID}@g ${KAFKA_CONF}
sed -i s@{LISTENERS}@${LISTENERS}@g ${KAFKA_CONF}
sed -i s@{KAFKA_DATA_DIR}@${KAFKA_DATA_DIR:-/data}@g ${KAFKA_CONF}
sed -i s@{ZOOK_SERVERS}@${ZOOK_SERVERS}@g ${KAFKA_CONF}
# 3、启动Kafka
cd ${KAFKA_DIR}/bin
sed -i '/export KAFKA_HEAP_OPTS/a export JMX_PORT="9999"' kafka-server-start.sh
./kafka-server-start.sh ../config/server.properties
# 3.1.4 构建镜像并推送仓库
# wget https://archive.apache.org/dist/kafka/2.2.0/kafka_2.12-2.2.0.tgz
# docker build -t registry.cn-hangzhou.aliyuncs.com/kubernetes_public/kafka:2.12.2 .
# docker push registry.cn-hangzhou.aliyuncs.com/kubernetes_public/kafka:2.12.2
# 3.2 迁移 Kafka 集群至 K8S
# 3.2.1 kafka-headless
# cat 01-kafka-headless.yaml
apiVersion: v1
kind: Service
metadata:
name: kafka-svc
namespace: logging
spec:
clusterIP: None
selector:
app: kafka
ports:
- name: client
port: 9092
targetPort: 9092
- name: jmx
port: 9999
targetPort: 9999
# 3.2.2 kafka-sts
# cat 02-kafka-sts.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: kafka
namespace: logging
spec:
serviceName: "kafka-svc"
replicas: 3
selector:
matchLabels:
app: kafka
template:
metadata:
labels:
app: kafka
spec:
affinity:
podAntiAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchExpressions:
- key: app
operator: In
values: ["kafka"]
topologyKey: "kubernetes.io/hostname"
imagePullSecrets:
- name: harbor-admin
containers:
- name: kafka
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/kafka:2.12.2
imagePullPolicy: Always
ports:
- name: client
containerPort: 9092
- name: jmxport
containerPort: 9999
env:
- name: ZOOK_SERVERS
value: "zookeeper-0.zookeeper-svc:2181,zookeeper-1.zookeeper-svc:2181,zookeeper-2.zookeeper-svc:2181"
readinessProbe: # 就绪探针，不就绪则不介入流量
tcpSocket:
port: 9092
initialDelaySeconds: 5
livenessProbe: # 存活探针。如果不存活则根据重启策略进行重启
tcpSocket:
port: 9092
initialDelaySeconds: 5
volumeMounts:
- name: data
mountPath: /data
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes: ["ReadWriteMany"]
storageClassName: "nfs-storage"
resources:
requests:
storage: 5Gi
# 3.2.3 更新资源清单
[root@k8s-master01 02-kafka]# kubectl apply -f 01-kafka-headless.yaml
[root@k8s-master01 02-kafka]# kubectl apply -f 02-kafka-sts.yaml
[root@k8s-master01 02-kafka]# kubectl get pods -n logging
NAME READY STATUS RESTARTS AGE
kafka-0 1/1 Running 0 5m49s
kafka-1 1/1 Running 0 4m43s
kafka-2 1/1 Running 0 3m40s
#查看kafka是否注册到zookeeper
[root@k8s-master01 02-kafka]# kubectl exec -it zookeeper-0 -n logging -- /bin/bash
root@zookeeper-0:/# /zookeeper/bin/zkCli.sh
[zk: localhost:2181(CONNECTED) 2] get /brokers/ids/1
{"listener_security_protocol_map":{"PLAINTEXT":"PLAINTEXT"},"endpoints":["PLAINTEXT://172.16.85.201:9092"],"jmx_port":9999,"host":"172.16.85.201","timestamp":"1748162470218","port":9092,"version":4}
[zk: localhost:2181(CONNECTED) 3] get /brokers/ids/2
{"listener_security_protocol_map":{"PLAINTEXT":"PLAINTEXT"},"endpoints":["PLAINTEXT://172.16.58.205:9092"],"jmx_port":9999,"host":"172.16.58.205","timestamp":"1748162532658","port":9092,"version":4}
[zk: localhost:2181(CONNECTED) 4] get /brokers/ids/3
{"listener_security_protocol_map":{"PLAINTEXT":"PLAINTEXT"},"endpoints":["PLAINTEXT://172.16.195.1:9092"],"jmx_port":9999,"host":"172.16.195.1","timestamp":"1748162649250","port":9092,"version":4}
# 3.2.4 检查 Kafka 集群
1.创建一个topic
root@kafka-0:/# /kafka/bin/kafka-topics.sh --create --zookeeper zookeeper-0.zookeeper-svc:2181,zookeeper-1.zookeeper-svc:2181,zookeeper-2.zookeeper-svc:2181 --partitions 1 --replication-factor 3 --topic oldxu
2.模拟消息发布
root@kafka-1:/# /kafka/bin/kafka-console-producer.sh --broker-list kafka-0.kafka-svc:9092,kafka-1.kafka-svc:9092,kafka-2.kafka-svc:9092 --topic oldxu
>hello kubernetes
>hello world
3.模拟消息订阅
root@kafka-2:/# /kafka/bin/kafka-console-consumer.sh --bootstrap-server kafka-0.kafka-svc:9092,kafka-1.kafka-svc:9092,kafka-2.kafka-svc:9092 --topic oldxu --from-beginning
hello kubernetes
hello world
# 四、交付 efak 至 K8S
# 4.1 制作 efak 镜像
# 4.1.1 Dockerfile
[root@manager 03-efak]# cat Dockerfile
FROM openjdk:8
# 1、调整时区
RUN /bin/cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && \
echo 'Asia/Shanghai' > /etc/timezone
# 2、拷贝kafka软件以及kafka的配置
ENV VERSION=3.0.1
ADD ./efak-web-${VERSION}-bin.tar.gz /
ADD ./system-config.properties /efak-web-${VERSION}/conf/system-config.properties
# 3、修改efak的名称
RUN mv /efak-web-${VERSION} /efak
# 4、环境变量
ENV KE_HOME=/efak
ENV PATH=$PATH:$KE_HOME/bin
# 5、启动脚本（修改kafka配置）
ADD ./entrypoint.sh /entrypoint.sh
# 6、暴露kafka端口 9999是jmx的端口
EXPOSE 8048
# 7、运行启动脚本
CMD ["/bin/bash","/entrypoint.sh"]
# 4.1.2 system-config
# cat system-config.properties
######################################
# 填写 zookeeper集群列表
######################################
efak.zk.cluster.alias=cluster1
cluster1.zk.list={ZOOK_SERVERS}
######################################
# broker 最大规模数量
######################################
cluster1.efak.broker.size=20
######################################
# zk 客户端线程数
######################################
kafka.zk.limit.size=32
######################################
# EFAK webui 端口
######################################
efak.webui.port=8048
######################################
# kafka offset storage
######################################
cluster1.efak.offset.storage=kafka
######################################
# kafka jmx uri
######################################
cluster1.efak.jmx.uri=service:jmx:rmi:///jndi/rmi://%s/jmxrmi
######################################
# kafka metrics 指标，默认存储15天
######################################
efak.metrics.charts=true
efak.metrics.retain=15
######################################
# kafka sql topic records max
######################################
efak.sql.topic.records.max=5000
efak.sql.topic.preview.records.max=10
######################################
# delete kafka topic token
######################################
efak.topic.token=keadmin
######################################
# kafka sqlite 数据库地址（需要修改存储路径）
######################################
efak.driver=org.sqlite.JDBC
efak.url=jdbc:sqlite:{EFAK_DATA_DIR}/db/ke.db
efak.username=root
efak.password=www.kafka-eagle.org
# 4.1.3 entrypoint
# cat entrypoint.sh
# 1、变量
EFAK_DIR=/efak
EFAK_CONF=/efak/conf/system-config.properties
# 2、替换配置文件内容，后期ZK集群的地址通过ENV传递
sed -i s@{EFAK_DATA_DIR}@${EFAK_DIR}@g ${EFAK_CONF}
sed -i s@{ZOOK_SERVERS}@${ZOOK_SERVERS}@g ${EFAK_CONF}
# 3、启动efka
${EFAK_DIR}/bin/ke.sh start
tail -f ${EFAK_DIR}/logs/ke_console.out
# 4.1.4 构建镜像并推送仓库
# wget https://github.com/smartloli/kafka-eagle-bin/archive/v3.0.1.tar.gz
# docker build -t registry.cn-hangzhou.aliyuncs.com/kubernetes_public/efak:3.0 .
# docker push registry.cn-hangzhou.aliyuncs.com/kubernetes_public/efak:3.0
# 4.2 迁移 efak 至 K8S
# 4.2.1 efak-deploy
# cat 01-efak-deploy.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: efak
namespace: logging
spec:
replicas: 1
selector:
matchLabels:
app: efak
template:
metadata:
labels:
app: efak
spec:
imagePullSecrets:
- name: harbor-admin
containers:
- name: efak
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/efak:3.0
imagePullPolicy: Always
ports:
- name: http
containerPort: 8048
env:
- name: ZOOK_SERVERS
value: "zookeeper-0.zookeeper-svc:2181,zookeeper-1.zookeeper-svc:2181,zookeeper-2.zookeeper-svc:2181"
# 4.2.2 efak-service
# cat 02-efak-service.yaml
apiVersion: v1
kind: Service
metadata:
name: efak-svc
namespace: logging
spec:
selector:
app: efak
ports:
- port: 8048
targetPort: 8048
# 4.2.3 efak-ingress
# cat 03-efak-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: efak-ingress
namespace: logging
spec:
ingressClassName: "nginx"
rules:
- host: "efak.hmallleasing.com"
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: efak-svc
port:
number: 8048
# 4.2.4 更新资源清单
[root@k8s-master01 03-efak]# kubectl apply -f 01-efak-deploy.yaml
[root@k8s-master01 03-efak]# kubectl apply -f 02-efak-service.yaml
[root@k8s-master01 03-efak]# kubectl apply -f 03-efak-ingress.yaml
# 4.2.5 访问 efka

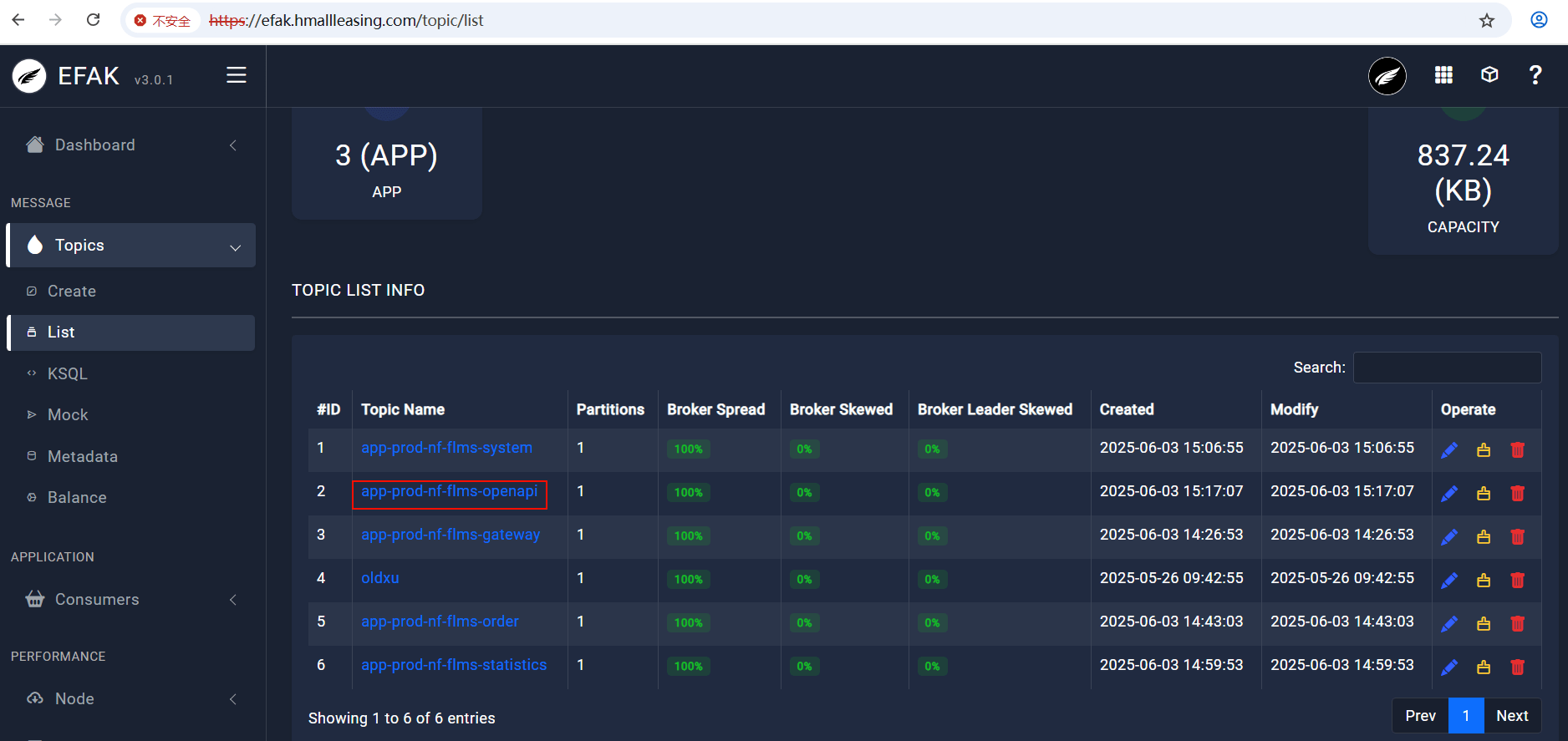

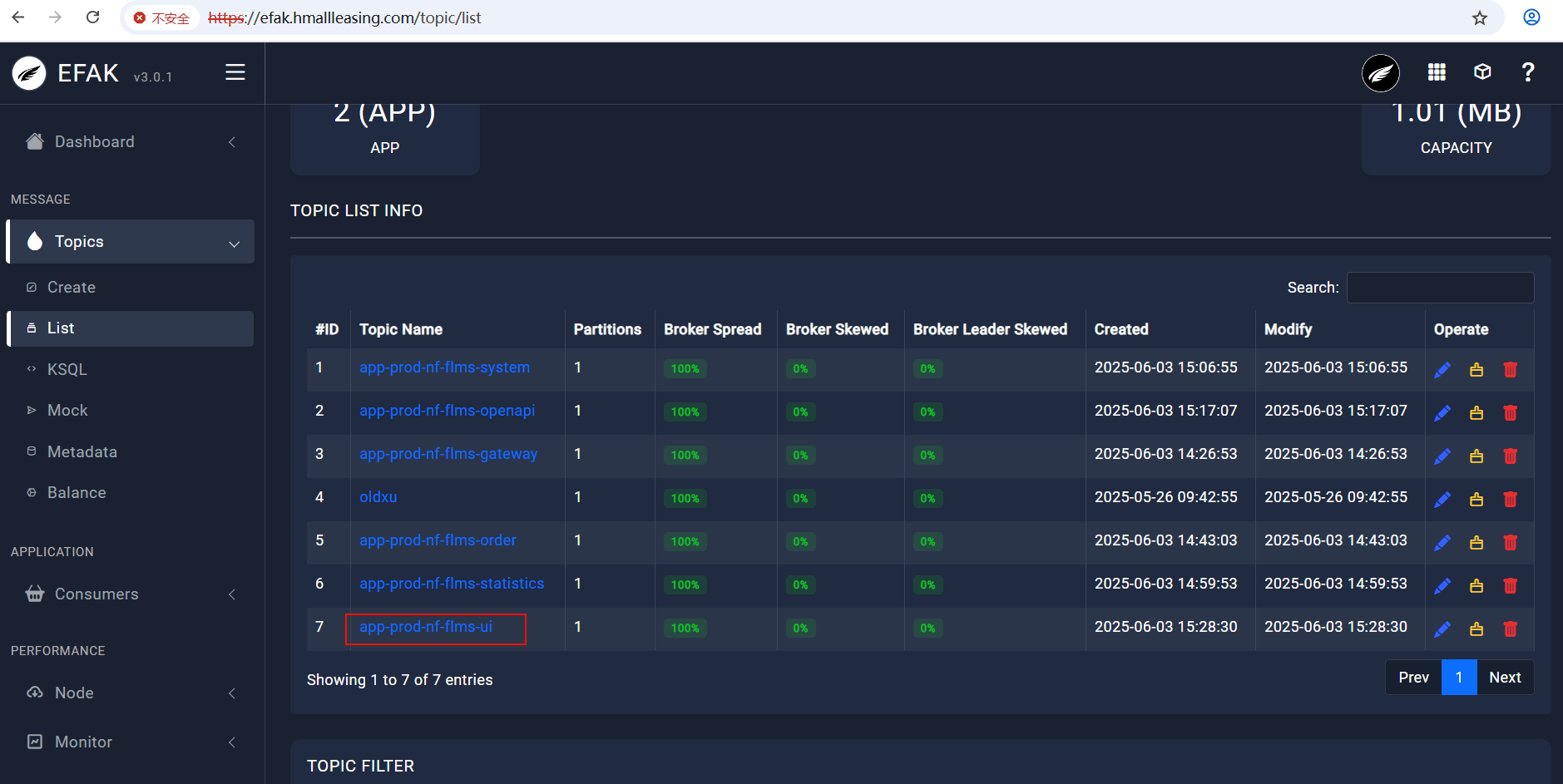

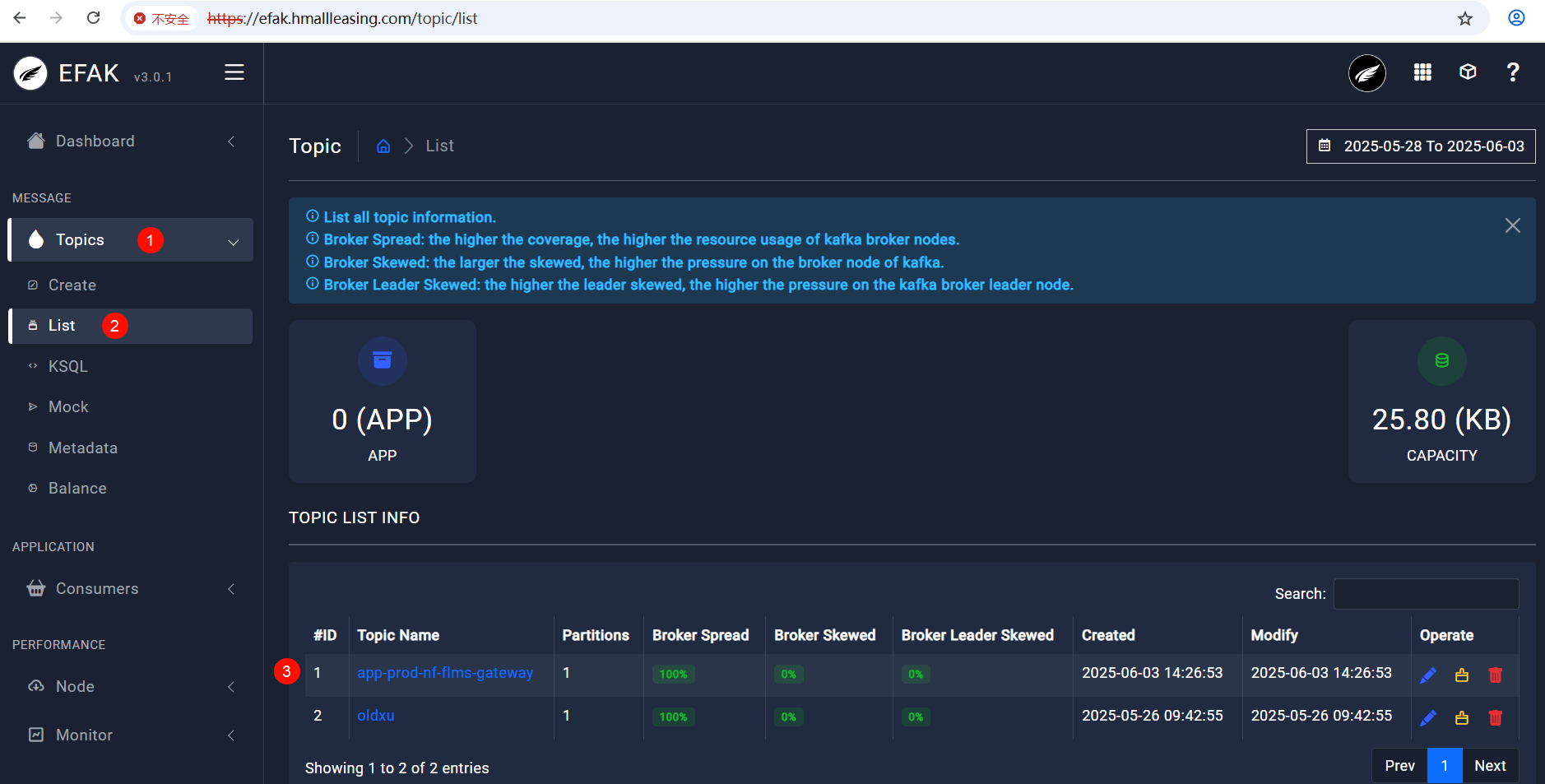

1、初始用户名密码 admin 123456

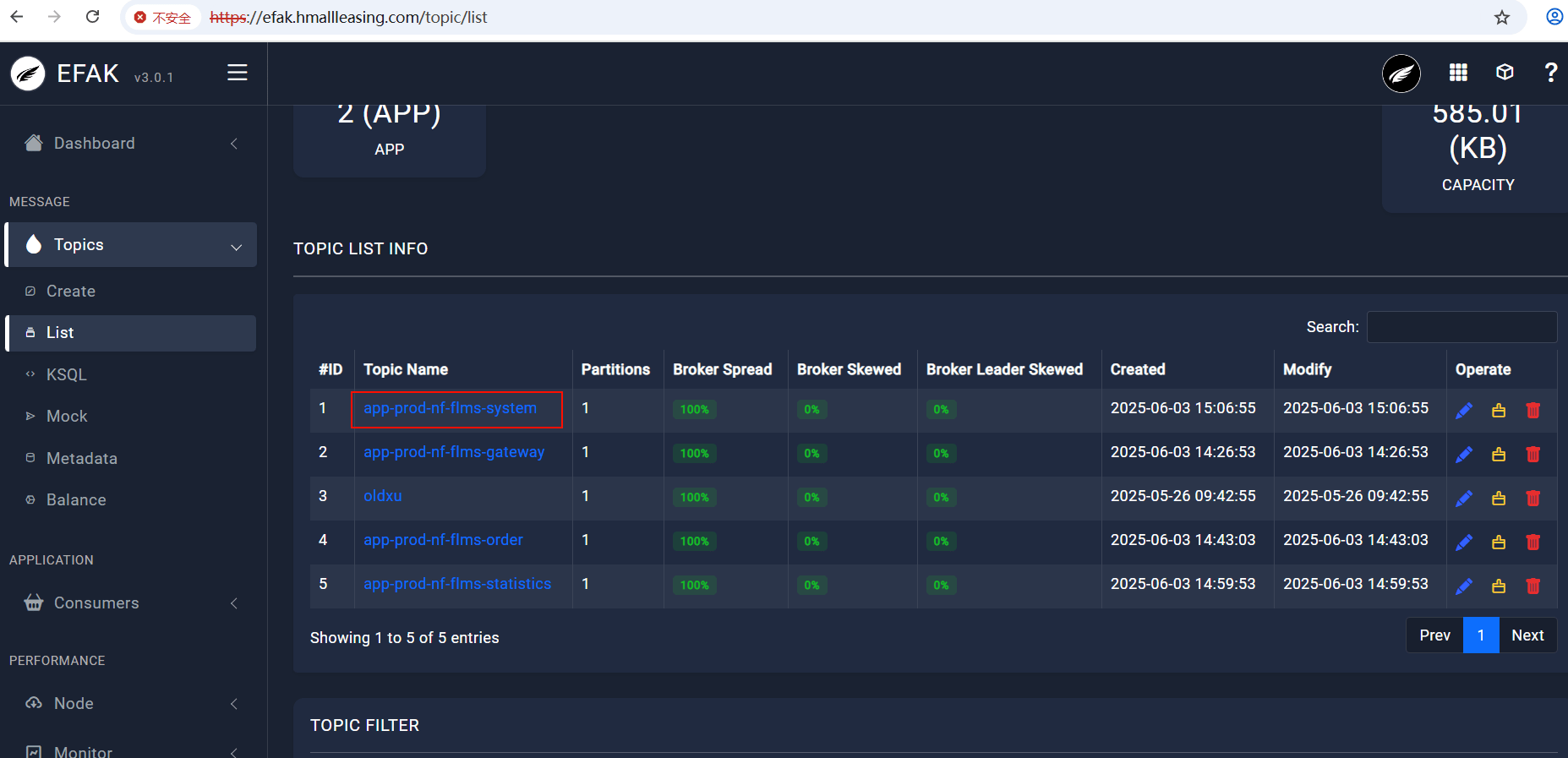

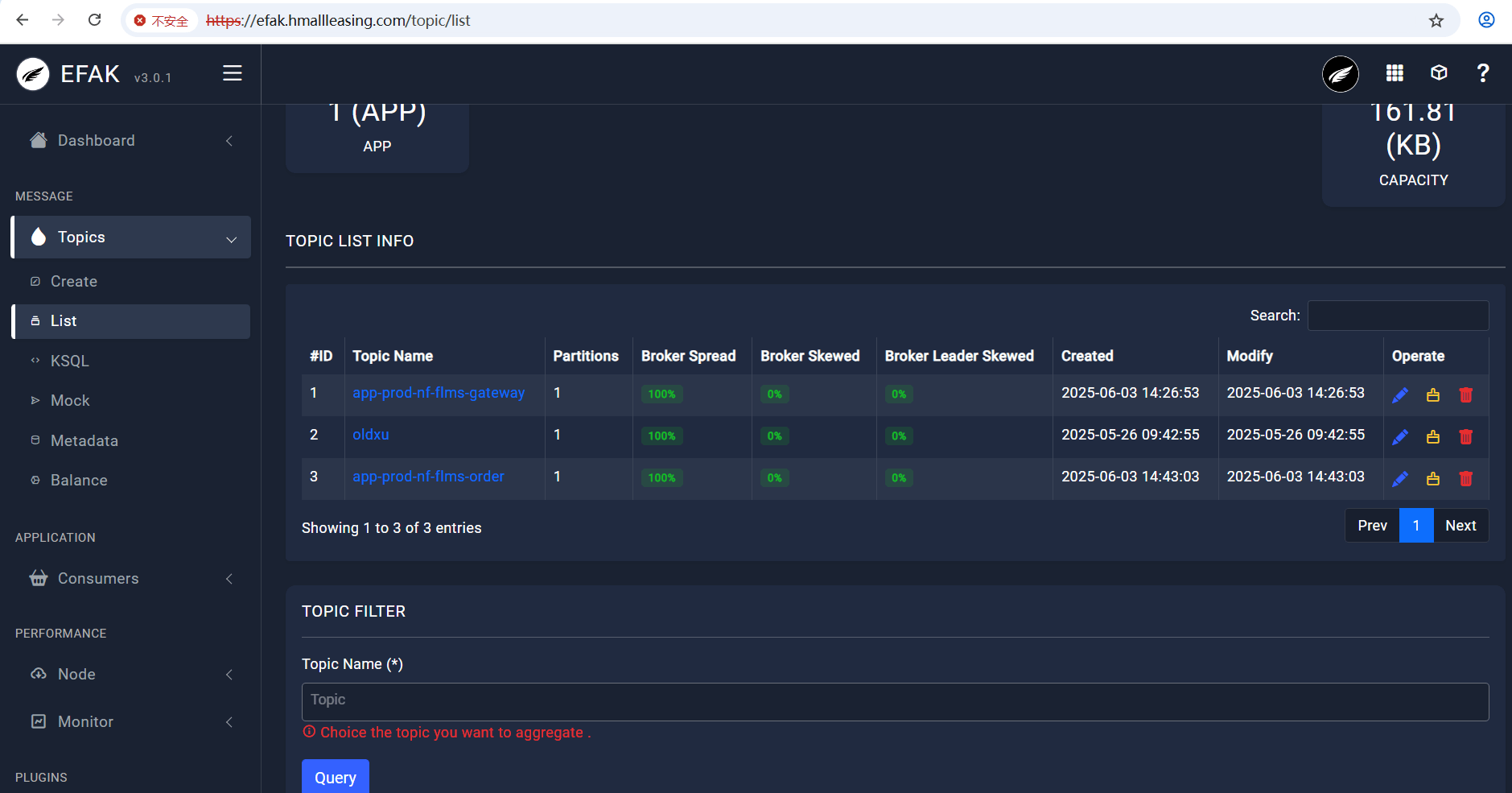

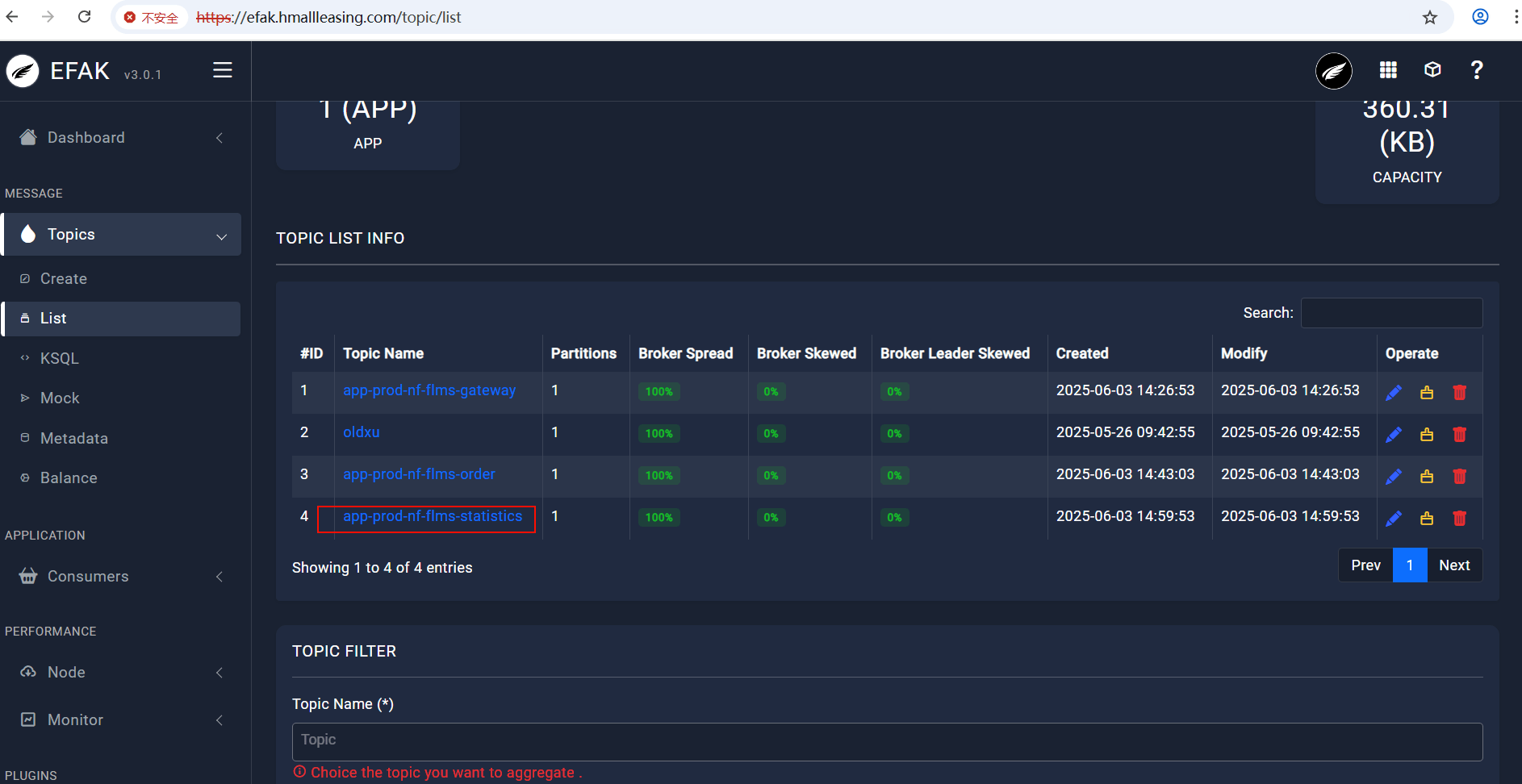

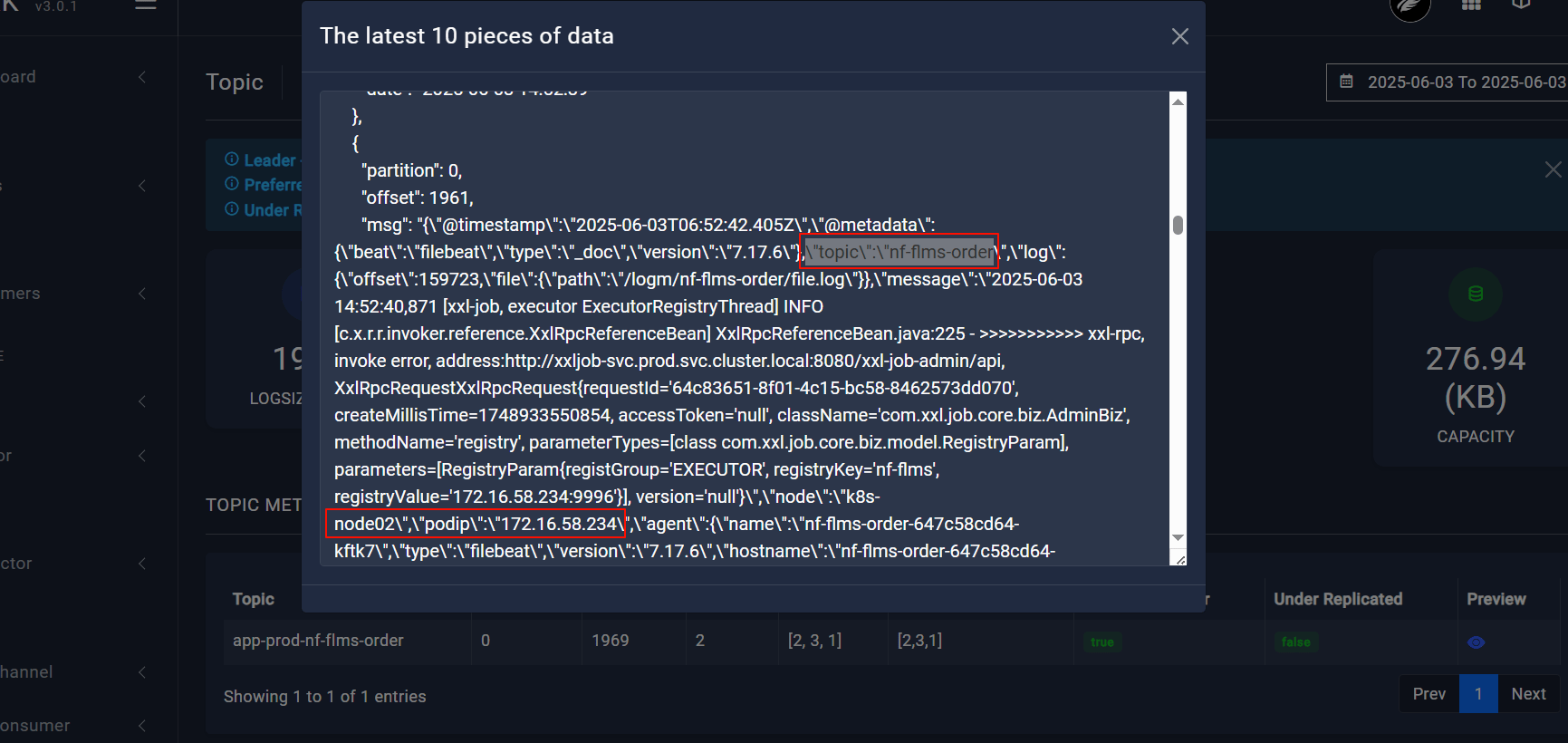

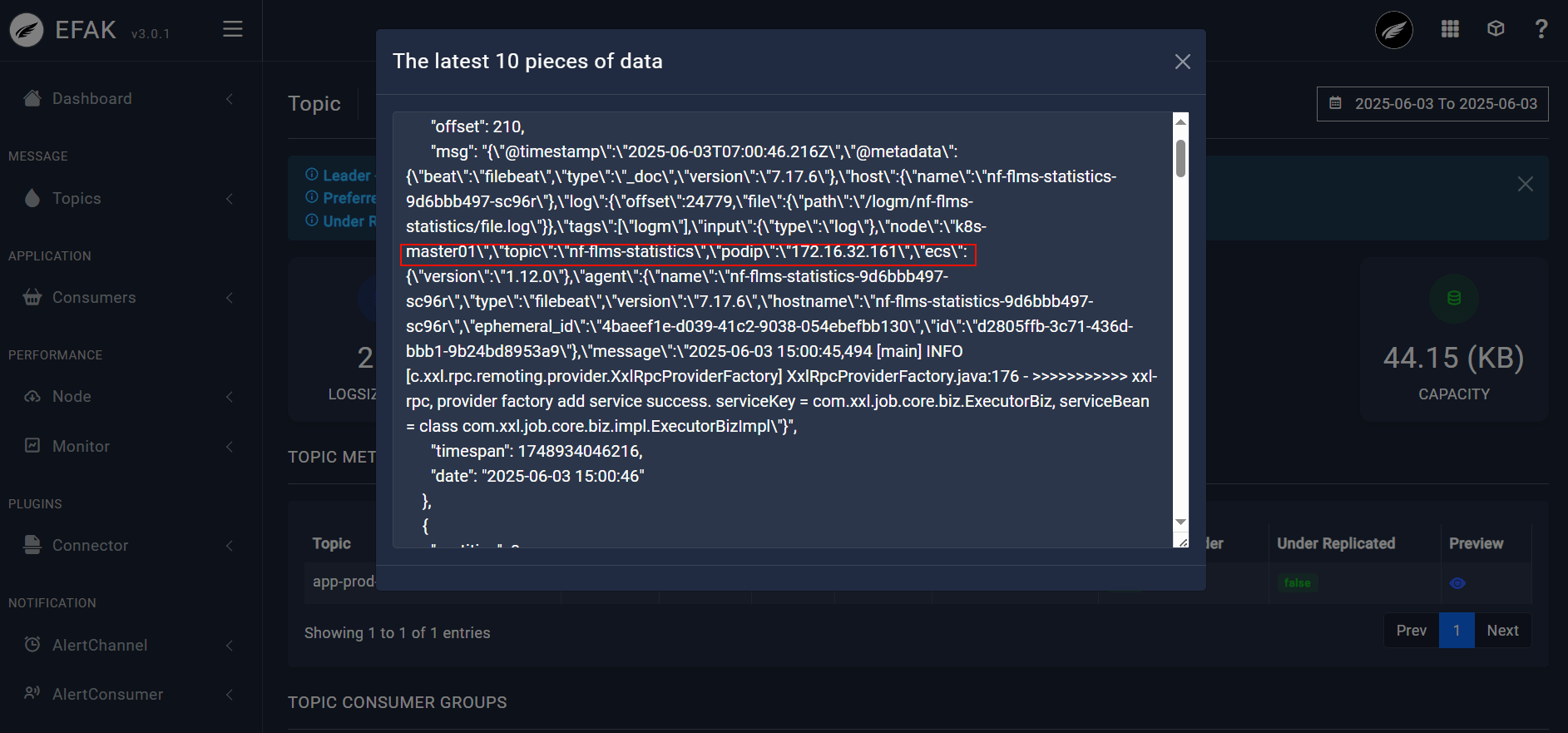

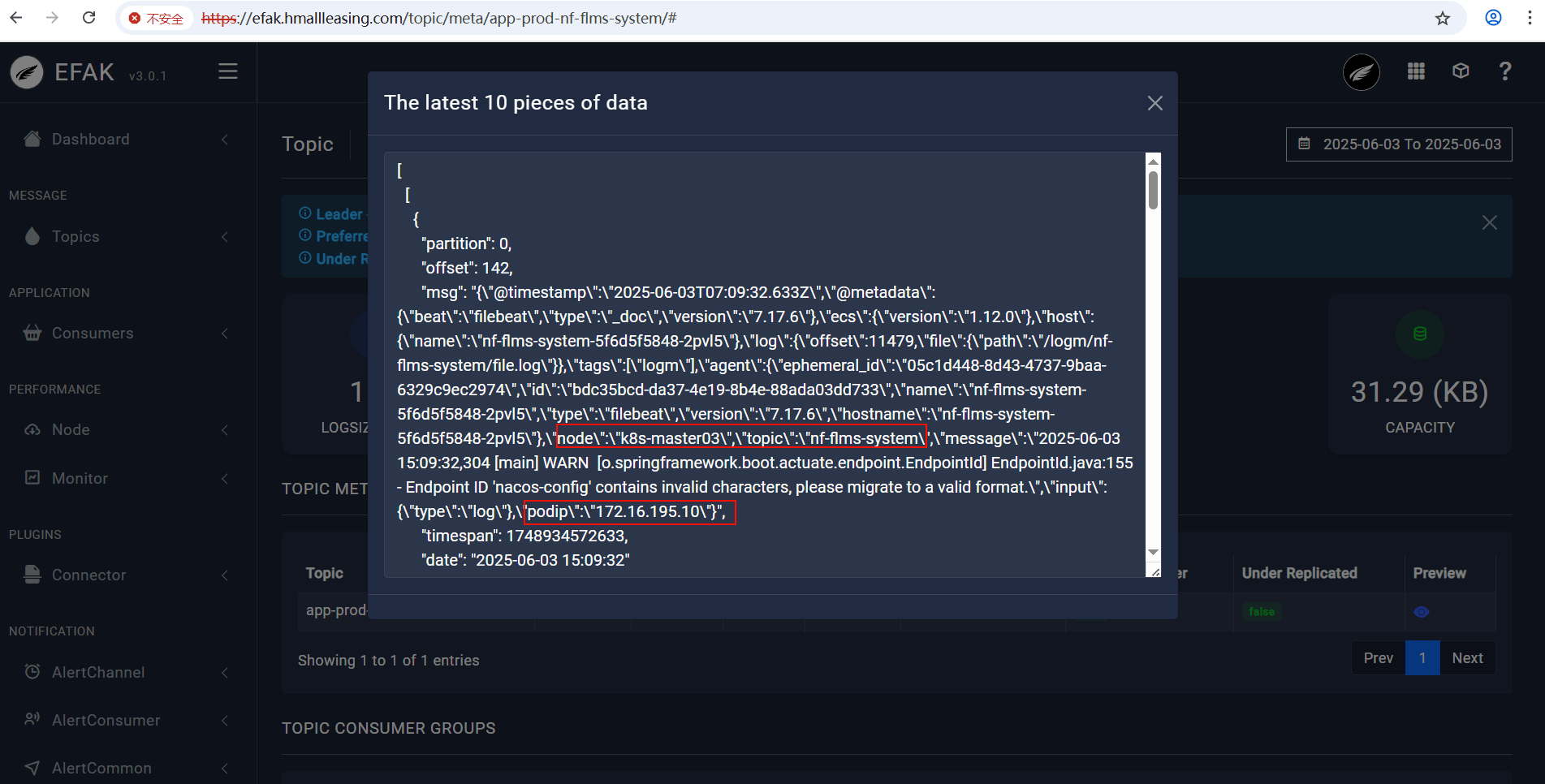

2、查看 Topics
3、查看 kafka 集群状态
4、查看 Zookeeper 集群状态
# 五、交付 Elastic 集群
- ES 集群是由多个节点组成的，通过 cluster.name 设置 ES 集群名称，同时用于区分其它的 ES 集群。
- 每个节点通过 node.name 参数来设定所在集群的节点名称。
- 节点使用 discovery.send_hosts 参数来设定集群节点的列表。
- 集群在第一次启动时，需要初始化，同时需要指定参与选举的 master 节点 IP，或节点名称。
- 每个节点可以通过 node.master:true 设定为 master 角色，通过 node.data:true 设定为 data 角色。
[root@k8s-master01 ~]# grep "^[a-Z]" /etc/elasticsearch/elasticsearch.yml
# 集群名称cluster.name: my-oldxu
# 节点名称node.name: node1
# 数据存储路径path.data: /var/lib/elasticsearch
# 日志存储路径path.logs: /var/log/elasticsearch
# 监听在本地哪个地址上network.host: 10.0.0.100
# 监听端口http.port: 9200
# 集群主机列表discovery.seed_hosts: ["ip1", "ip2", "ip3"]
# 仅第一次启动集群时进行选举（可以填写node.name的名称）cluster.initial_master_nodes: ["node01", "node02", "node03"]
# 5.1 下载 elastic 镜像
# docker pull elasticsearch:7.17.6
# docker tag elasticsearch:7.17.6 registry.cn-hangzhou.aliyuncs.com/kubernetes_public/elasticsearch:7.17.6
# docker push registry.cn-hangzhou.aliyuncs.com/kubernetes_public/elasticsearch:7.17.6
# 5.2 交付 ES-Service
创建 es-headlessService，为每个 ES Pod 设定固定的 DNS 名称，无论它是 Master 或是 Data，易或是 Coordinating
# cat 01-es-svc.yaml
apiVersion: v1
kind: Service
metadata:
name: es-svc
namespace: logging
spec:
selector:
app: es
clusterIP: None
ports:
- name: cluster
port: 9200
targetPort: 9200
- name: transport
port: 9300
targetPort: 9300
# 5.3 交付 ES-Master 节点
ES 无法使用 root 直接启动，需要授权数据目录 UID=1000，同时还需要持久化 /usr/share/elasticsearch/data ；
ES 所有节点都需要设定 vm.max_map_count 内核参数以及 ulimit；
ES 启动是通过 ENV 环境变量传参来完成的；
集群名称、节点名称、角色类型；
discovery.seed_hosts 集群地址列表；
cluster.initial_master_nodes 初始集群参与选举的 master 节点名称；
# cat 02-es-master.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: es-master
namespace: logging
spec:
serviceName: "es-svc"
replicas: 3 # es-pod运行的实例
selector: # 需要管理的ES-Pod标签
matchLabels:
app: es
role: master
template:
metadata:
labels:
app: es
role: master
spec: # 定义pod规范
imagePullSecrets: # 镜像拉取使用的认证信息
- name: harbor-admin
affinity: # 设定pod反亲和
podAntiAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchExpressions:
- key: app
operator: In
values: ["es"]
- key: role
operator: In
values: ["master"]
topologyKey: "kubernetes.io/hostname" # 每个节点就是一个位置
initContainers: # 初始化容器设定
- name: fix-permissions
image: busybox
command: ["sh","-c","chown -R 1000:1000 /usr/share/elasticsearch/data ; sysctl -w vm.max_map_count=262144; ulimit -n 65536"]
securityContext:
privileged: true
volumeMounts:
- name: data
mountPath: /usr/share/elasticsearch/data
containers: # ES主容器
- name: es
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/elasticsearch:7.17.6
resources:
limits:
cpu: 1000m
memory: 4096Mi
requests:
cpu: 300m
memory: 1024Mi
ports:
- name: cluster
containerPort: 9200
- name: transport
containerPort: 9300
volumeMounts:
- name: data
mountPath: /usr/share/elasticsearch/data
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
env:
- name: ES_JAVA_OPTS
value: "-Xms1g -Xmx1g"
- name: cluster.name
value: es-cluster
- name: node.name
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: node.master
value: "true"
- name: node.data
value: "false"
- name: discovery.seed_hosts
value: "es-master-0.es-svc,es-master-1.es-svc,es-master-2.es-svc"
- name: cluster.initial_master_nodes
value: "es-master-0,es-master-1,es-master-2"
volumes:
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
type: ""
- name: timezone
hostPath:
path: /etc/timezone
type: ""
volumeClaimTemplates: # 动态pvc
- metadata:
name: data
spec:
accessModes: ["ReadWriteOnce"]
storageClassName: "nfs-storage"
resources:
requests:
storage: 5Gi
[root@k8s-master01 04-elasticsearch]# cat 03-es-data.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: es-data
namespace: logging
spec:
serviceName: "es-svc"
replicas: 2 # es-pod运行的实例
selector: # 需要管理的ES-Pod标签
matchLabels:
app: es
role: data
template:
metadata:
labels:
app: es
role: data
spec: # 定义pod规范
imagePullSecrets: # 镜像拉取使用的认证信息
- name: harbor-admin
affinity: # 设定pod反亲和
podAntiAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchExpressions:
- key: app
operator: In
values: ["es"]
- key: role
operator: In
values: ["data"]
topologyKey: "kubernetes.io/hostname" # 每个节点就是一个位置
initContainers: # 初始化容器设定
- name: fix-permissions
image: busybox
command: ["sh","-c","chown -R 1000:1000 /usr/share/elasticsearch/data ; sysctl -w vm.max_map_count=262144; ulimit -n 65536"]
securityContext:
privileged: true
volumeMounts:
- name: data
mountPath: /usr/share/elasticsearch/data
containers: # ES主容器
- name: es
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/elasticsearch:7.17.6
resources:
limits:
cpu: 1000m
memory: 4096Mi
requests:
cpu: 300m
memory: 1024Mi
ports:
- name: cluster
containerPort: 9200
- name: transport
containerPort: 9300
volumeMounts:
- name: data
mountPath: /usr/share/elasticsearch/data
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
env:
- name: ES_JAVA_OPTS
value: "-Xms1g -Xmx1g"
- name: cluster.name
value: es-cluster
- name: node.name
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: node.master
value: "false"
- name: node.data
value: "true"
- name: discovery.seed_hosts
value: "es-master-0.es-svc,es-master-1.es-svc,es-master-2.es-svc"
volumes:
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
type: ""
- name: timezone
hostPath:
path: /etc/timezone
type: ""
volumeClaimTemplates: # 动态pvc
- metadata:
name: data
spec:
accessModes: ["ReadWriteOnce"]
storageClassName: "nfs-storage"
resources:
requests:
storage: 5Gi
# 5.4 交付 ES-Data 节点
ES 无法使用 root 直接启动，需要授权数据目录 UID=1000，同时还需要持久化 /usr/share/elasticsearch/data
ES 所有节点都需要设定 vm.max_map_count 内核参数以及 ulimit；
ES 启动是通过 ENV 环境变量传参来完成的
集群名称、节点名称、角色类型
discovery.seed_hosts 集群地址列表
# cat 03-es-data.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: es-data
namespace: logging
spec:
serviceName: "es-svc"
replicas: 2 # es-pod运行的实例
selector: # 需要管理的ES-Pod标签
matchLabels:
app: es
role: data
template:
metadata:
labels:
app: es
role: data
spec: # 定义pod规范
imagePullSecrets: # 镜像拉取使用的认证信息
- name: harbor-admin
affinity: # 设定pod反亲和
podAntiAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchExpressions:
- key: app
operator: In
values: ["es"]
- key: role
operator: In
values: ["data"]
topologyKey: "kubernetes.io/hostname" # 每个节点就是一个位置
initContainers: # 初始化容器设定
- name: fix-permissions
image: busybox
command: ["sh","-c","chown -R 1000:1000 /usr/share/elasticsearch/data ; sysctl -w vm.max_map_count=262144; ulimit -n 65536"]
securityContext:
privileged: true
volumeMounts:
- name: data
mountPath: /usr/share/elasticsearch/data
containers: # ES主容器
- name: es
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/elasticsearch:7.17.6
resources:
limits:
cpu: 1000m
memory: 4096Mi
requests:
cpu: 300m
memory: 1024Mi
ports:
- name: cluster
containerPort: 9200
- name: transport
containerPort: 9300
volumeMounts:
- name: data
mountPath: /usr/share/elasticsearch/data
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
env:
- name: ES_JAVA_OPTS
value: "-Xms1g -Xmx1g"
- name: cluster.name
value: es-cluster
- name: node.name
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: node.master
value: "false"
- name: node.data
value: "true"
- name: discovery.seed_hosts
value: "es-master-0.es-svc,es-master-1.es-svc,es-master-2.es-svc"
volumes:
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
type: ""
- name: timezone
hostPath:
path: /etc/timezone
type: ""
volumeClaimTemplates: # 动态pvc
- metadata:
name: data
spec:
accessModes: ["ReadWriteOnce"]
storageClassName: "nfs-storage"
resources:
requests:
storage: 5Gi
# 5.5 更新资源清单
[root@k8s-master01 04-elasticsearch]# kubectl apply -f 01-es-svc.yaml
[root@k8s-master01 04-elasticsearch]# kubectl apply -f 02-es-master.yaml
[root@k8s-master01 04-elasticsearch]# kubectl apply -f 03-es-data.yaml
# 5.6 验证 ES 集群
#1.解析headlessService获取对应ES集群任一节点的IP地址
# dig @10.96.0.10 es-svc.logging.svc.cluster.local +short
172.16.58.229
172.16.122.191
172.16.195.21
172.16.122.129
172.16.32.164
#2.通过curl访问ES，检查ES集群是否正常（如果仅交付Master，没有data节点，集群状态可能会Red，因为没有数据节点进行数据存储；）
# curl -XGET "http://172.16.122.129:9200/_cluster/health?pretty"
{
"cluster_name" : "es-cluster",
"status" : "green",
"timed_out" : false,
"number_of_nodes" : 5,
"number_of_data_nodes" : 2,
"active_primary_shards" : 3,
"active_shards" : 6,
"relocating_shards" : 0,
"initializing_shards" : 0,
"unassigned_shards" : 0,
"delayed_unassigned_shards" : 0,
"number_of_pending_tasks" : 0,
"number_of_in_flight_fetch" : 0,
"task_max_waiting_in_queue_millis" : 0,
"active_shards_percent_as_number" : 100.0
}
#3.查看ES各个节点详情
# curl -XGET "http://172.16.122.129:9200/_cat/nodes"
172.16.122.129 16 33 20 0.38 0.56 0.38 ilmr - es-master-2
172.16.58.229 66 33 22 0.64 0.66 0.44 ilmr * es-master-1
172.16.122.191 52 34 15 0.38 0.56 0.38 cdfhilrstw - es-data-0
172.16.195.21 38 35 19 0.38 0.53 0.36 cdfhilrstw - es-data-1
172.16.32.164 31 33 12 0.28 0.50 0.59 ilmr - es-master-0
# 六、交付 Kibana 可视化
# 6.1 下载 kibana 镜像
# docker pull kibana:7.17.6
# docker tag kibana:7.17.6 registry.cn-hangzhou.aliyuncs.com/kubernetes_public/kibana:7.17.6
# docker push registry.cn-hangzhou.aliyuncs.com/kubernetes_public/kibana:7.17.6
# 6.2 kibana-deploy
- Kibana 需要连接 ES 集群，通过 ELASTICSEARCH_HOSTS 变量来传递 ES 集群地址
- kibana 通过 I18N_LOCALE 来传递语言环境
- Kibana 通过 SERVER_PUBLICBASEURL 来传递服务访问的公开地址
# cat 01-kibana-deploy.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: kibana
namespace: logging
spec:
replicas: 1
selector:
matchLabels:
app: kibana
template:
metadata:
labels:
app: kibana
spec:
imagePullSecrets:
- name: harbor-admin
containers:
- name: kibana
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/kibana:7.17.6
resources:
limits:
cpu: 1000m
ports:
- containerPort: 5601
env:
- name: ELASTICSEARCH_HOSTS
value: '["http://es-data-0.es-svc:9200","http://es-data-1.es-svc:9200"]'
- name: I18N_LOCALE
value: "zh-CN"
- name: SERVER_PUBLICBASEURL
value: "http://kibana.hmallleasing.com" #kibana访问UI
volumeMounts:
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
volumes:
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
type: ""
- name: timezone
hostPath:
path: /etc/timezone
type: ""
# 6.3 kibana-svc
# cat 02-kibana-svc.yaml
apiVersion: v1
kind: Service
metadata:
name: kibana-svc
namespace: logging
spec:
selector:
app: kibana
ports:
- name: web
port: 5601
targetPort: 5601
# 6.4 kibana-ingress
# cat 03-kibana-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: kibana-ingress
namespace: logging
spec:
ingressClassName: "nginx"
rules:
- host: "kibana.hmallleasing.com"
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: kibana-svc
port:
number: 5601
# 6.5 更新资源清单
[root@k8s-master01 05-kibana]# kubectl apply -f 01-kibana-deploy.yaml
[root@k8s-master01 05-kibana]# kubectl apply -f 02-kibana-svc.yaml
[root@k8s-master01 05-kibana]# kubectl apply -f 03-kibana-ingress.yaml
[root@k8s-master01 05-kibana]# kubectl get pods -n logging
NAME READY STATUS RESTARTS AGE
efak-5cdc74bf59-nrhb4 1/1 Running 0 5h33m
es-data-0 1/1 Running 0 16m
es-data-1 1/1 Running 0 15m
es-master-0 1/1 Running 0 17m
es-master-1 1/1 Running 0 15m
es-master-2 1/1 Running 0 12m
kafka-0 1/1 Running 0 5h39m
kafka-1 1/1 Running 0 5h39m
kafka-2 1/1 Running 0 5h38m
kibana-5ccc46864b-ndzx9 1/1 Running 0 118s
zookeeper-0 1/1 Running 0 5h42m
zookeeper-1 1/1 Running 0 5h42m
zookeeper-2 1/1 Running 0 5h41m

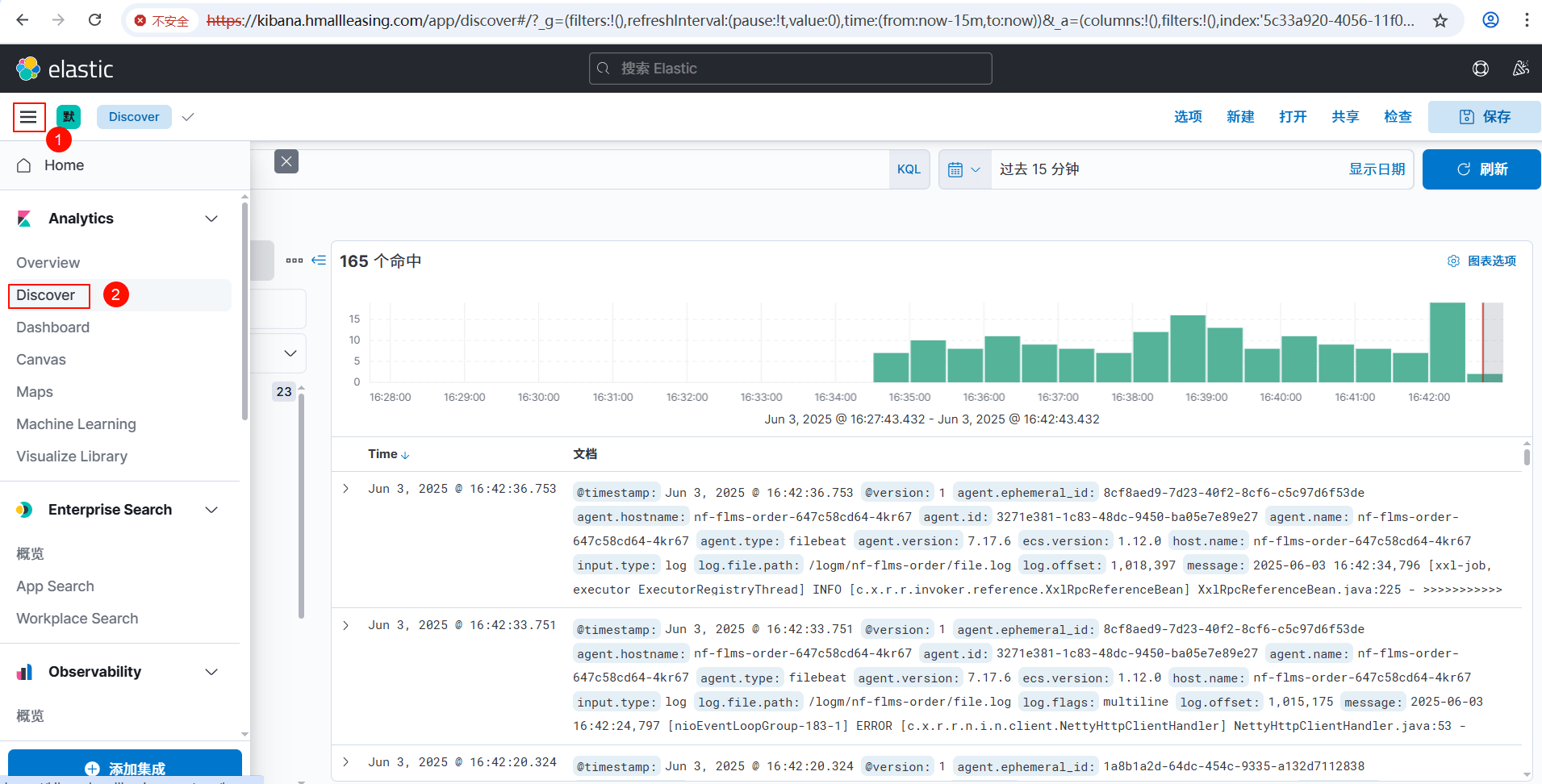

# 6.6 访问 kibana
# 七、filebeat-sidecar 收集业务应用日志

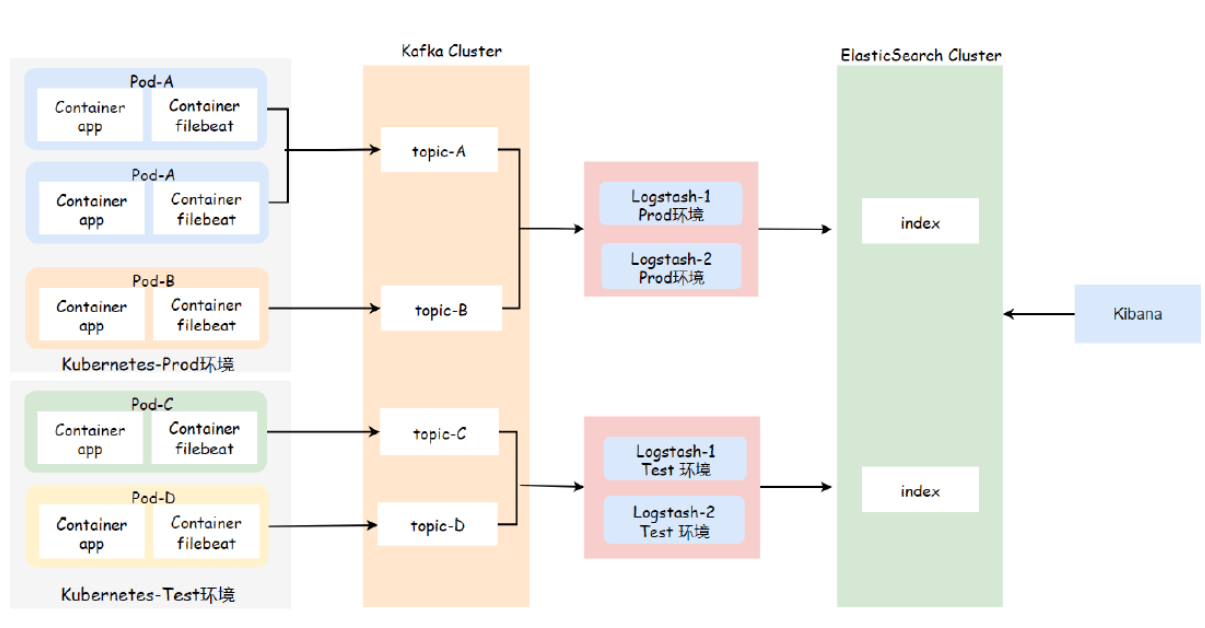

# 7.1 部署架构说明
对于那些能够将日志输出到本地文件的 Pod，我们可以使用 Sidecar 模式方式运行一个日志采集 Agent，对其进行单独收集日志。
- 首先需要将 Pod 中的业务容器日志输出至本地文件，而后运行一个 Filebeat 边车容器，采集本地路径下的日志；
- Filebeat 容器需要传递如下变量；
- ENV：了解 Pod 属于隶属于哪个环境；
- PROJECT_NAME：为了后期能在单个索引中区分出不同的项目；
- PodIP：为了让用户清楚该 Pod 属于哪个 IP；
- Node：用于获取该 Pod 所处的节点；
- Logstash 根据不同的环境，拉取不同的 topic 数据，然后将数据存储至 ES 对应的索引中；
- Kibana 添加不同环境的 index pattern，而后选择对应环境不同的项目进行日志探索与展示；
# 7.2 Sidecar 部署思路
- 制作一个业务镜像，要求镜像输出日志至本地；
- 制作 Filebeat 镜像，配置 Input、output 等信息；
- 采用边车模式运行不同环境的 Pod，确保日志信息能输出至 Kafka 集群；
- 准备不同环境下 Logstash 配置文件，而后读取数据写入 ES 集群；
- 使用 kibana 添加索引，进行日志探索与展示；
# 7.3 制作 Filebeat 镜像
7.3.1 下载 filebeat
curl -L -O https://artifacts.elastic.co/downloads/beats/filebeat/filebeat-7.17.6-x86_64.rpm
7.3.2 编写 Dockerfile
# cat Dockerfile
# 1、基础镜像
FROM centos:7
# 2、拷贝filebeat
ENV VERSION=7.17.6
ADD ./filebeat-${VERSION}-x86_64.rpm /
RUN rpm -ivh /filebeat-${VERSION}-x86_64.rpm && \
rm -f /filebeat-${VERSION}-x86_64.rpm
# 3、拷贝filebeat配置文件（核心）
ADD ./filebeat.yml /etc/filebeat/filebeat.yml
# 4、拷贝启动脚本
ADD ./entrypoint.sh /entrypoint.sh
RUN chmod +x /entrypoint.sh
# 5、执行启动脚本
CMD ["/bin/bash","-c","/entrypoint.sh"]
7.3.3 编写 entrypoint
# cat entrypoint.sh
#启动脚本
#1、替换filbeat配置文件中的内容
Beat_Conf=/etc/filebeat/filebeat.yml
sed -i s@{ENV}@${ENV:-test}@g ${Beat_Conf}
sed -i s@{PodIP}@${PodIP:-"no-ip"}@g ${Beat_Conf}
sed -i s@{Node}@${Node:-"none"}@g ${Beat_Conf}
sed -i s@{PROJECT_NAME}@${PROJECT_NAME:-"no-define"}@g ${Beat_Conf}
sed -i s@{MULTILINE}@${MULTILINE:-"^\\\d{2}"}@g ${Beat_Conf} # \\用来转义
sed -i s@{KAFKA_HOSTS}@${KAFKA_HOSTS}@g ${Beat_Conf}
# 2、运行filebeat
filebeat -e -c /etc/filebeat/filebeat.yml
7.3.4 编写 filebeat 配置
{ENV}：用于定义环境的变量；
{PROJECT_NAME}：用于定义项目名称的变量；
{MULTILINE}：用于定义多行合并的正则变量；
{KAFKA_HOSTS}：用于定义 KAFKA 集群地址的变量；
{PodIP}：用于获取该 Pod 地址的变量；
{Node}：用于获取该 Pod 所处的节点；
[root@k8s-master01 filebeat_sidecar_dockerfile]# cat filebeat.yml
filebeat.inputs:
- type: log
enabled: true
paths:
- /logu/*.log
- /logu/*/*.log
tags: ["logu"]
fields:
topic: {PROJECT_NAME}
podip: {PodIP}
node: {Node}
fields_under_root: true # 增加的所有字段都为顶级字段
- type: log
enabled: true
paths:
- /logm/*.log
- /logm/*/*.log
tags: ["logm"]
fields:
topic: {PROJECT_NAME}
podip: {PodIP}
node: {Node}
fields_under_root: true # 增加的所有字段都为顶级字段
multiline.pattern: '{MULTILINE}'
multiline.negate: true
multiline.match: after
multiline.max_lines: 10000 #默认最大合并行为500，可根据实际情况调整。
output.kafka:
hosts: [{KAFKA_HOSTS}]
topic: app-{ENV}-%{[topic]}
required_acks: 1 # 保证消息可靠，0不保证，1等待写入主分区（默认），-1等待写入副本分区
compression: gzip # 压缩
max_message_bytes: 1000000 # 每条消息最大的长度，多余的被删除
7.3.5 构建并推送镜像
# docker build -t registry.cn-hangzhou.aliyuncs.com/kubernetes_public/filebeat_sidecar:7.17.6 .
# docker push registry.cn-hangzhou.aliyuncs.com/kubernetes_public/filebeat_sidecar:7.17.6
# 7.4 nf-flms-gateway 日志收集
7.4.1 创建 Namespace 和 Secrets
# sed -i "s#dev#prod#g" *.yaml
# kubectl create ns prod
# kubectl create secret tls prod-api.hmallleasig.com --key hmallleasing.com.key --cert hmallleasing.com.pem -n prod
# kubectl create secret docker-registry harbor-admin --docker-server=registry.cn-hangzhou.aliyuncs.com --docker-username=xyapples@163.com --docker-password=passwd -n prod
7.4.2 创建 nf-flms-gateway
# cat 01-nf-flms-gateway.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: nf-flms-gateway
namespace: prod
spec:
replicas: 2
selector:
matchLabels:
app: nf-flms-gateway
template:
metadata:
labels:
app: nf-flms-gateway
spec:
imagePullSecrets:
- name: harbor-admin
containers:
- name: nf-flms-gateway
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/nf-flms-gateway:v2.2
command:
- "/bin/sh"
- "-c"
- "java -Xms256m -Xmx1024m -Dspring.profiles.active=prd -Djava.security.egd=file:/dev/./urandom -jar -Duser.timezone=GMT+08 nf-flms-gateway.jar"
resources:
limits:
cpu: '1000m'
memory: 1Gi
requests:
cpu: "200m"
memory: "500Mi"
ports:
- containerPort: 8080
readinessProbe: # 就绪探针，不就绪则从负载均衡移除
tcpSocket:
port: 8080
initialDelaySeconds: 60
periodSeconds: 30
timeoutSeconds: 3
successThreshold: 1
failureThreshold: 2
livenessProbe: # 存活探针，不存活会重启
tcpSocket:
port: 8080
initialDelaySeconds: 60
periodSeconds: 30
timeoutSeconds: 3
successThreshold: 1
failureThreshold: 2
volumeMounts:
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
- name: log
mountPath: /logs # 业务容器日志目录
- name: filebeat
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/filebeat_sidecar:7.17.6
imagePullPolicy: Always
volumeMounts:
- name: log
mountPath: /logm # 匹配多行日志
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
env:
- name: ENV
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: metadata.namespace
- name: PodIP
valueFrom:
fieldRef:
fieldPath: status.podIP
- name: Node
valueFrom:
fieldRef:
fieldPath: spec.nodeName
- name: PROJECT_NAME
value: "nf-flms-gateway"
- name: KAFKA_HOSTS
value: '"kafka-0.kafka-svc.logging:9092","kafka-1.kafka-svc.logging:9092","kafka-2.kafka-svc.logging:9092"'
volumes:
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
type: ""
- name: timezone
hostPath:
path: /etc/timezone
type: ""
- name: log
emptyDir: {}
---
apiVersion: v1
kind: Service
metadata:
name: gateway-svc
namespace: prod
spec:
selector:
app: nf-flms-gateway
ports:
- port: 8080
targetPort: 8080
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: gateway-ingress
namespace: prod
annotations:
nginx.ingress.kubernetes.io/ssl-redirect: "false" #禁用https强制跳转
spec:
ingressClassName: "nginx"
rules:
- host: "prod-api.hmallleasing.com"
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: gateway-svc
port:
number: 8080
tls: #https
- hosts:
- prod-api.hmallleasing.com
secretName: "prod-api.hmallleasig.com" #配置默认证书可不添加secretNam
7.4.3 检查 KafkaTopic

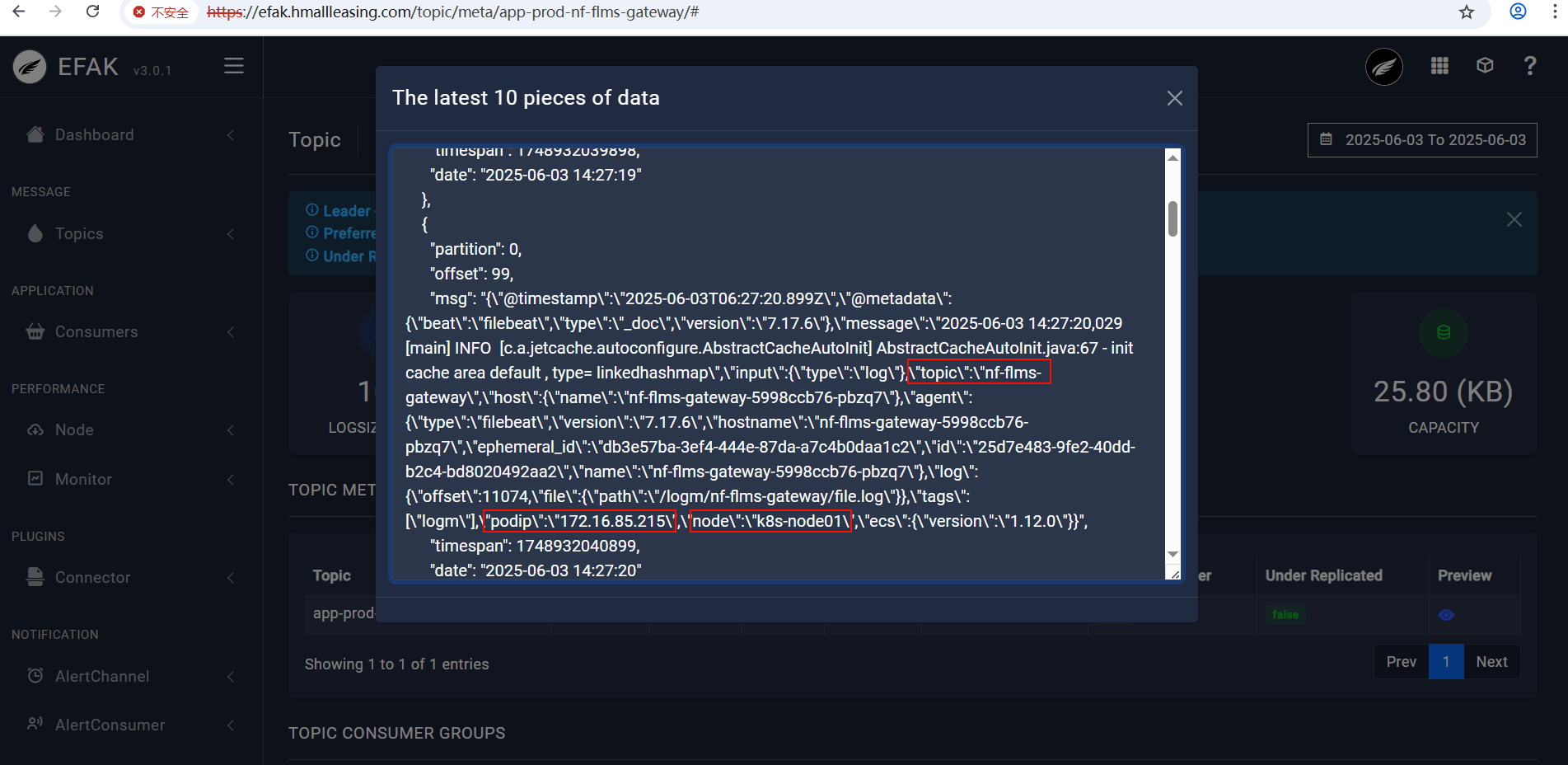

1、检查是否有对应的 topic
2、点击对应的 Preview，查看 topic 中的最新数据
# 7.5 nf-flms-order 日志收集
7.5.1 创建 PVC
创建 PVC 存储订单合同、身份证复印件等附件
# cat 02-data-image.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: data-image
namespace: prod
spec:
storageClassName: "nfs-storage" # 明确指定使用哪个sc的供应商来创建pv
accessModes:
- ReadWriteMany
resources:
requests:
storage: 2Gi # 根据业务实际大小进行资源申请
7.5.2 创建 nf-flms-order
# cat 02-nf-flms-order.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: nf-flms-order
namespace: prod
spec:
replicas: 2
selector:
matchLabels:
app: nf-flms-order
template:
metadata:
labels:
app: nf-flms-order
spec:
imagePullSecrets:
- name: harbor-admin
containers:
- name: nf-flms-order
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/nf-flms-order:v2.0
command:
- "/bin/sh"
- "-c"
- "java -Xms256m -Xmx1024m -Dspring.profiles.active=prd -Djava.security.egd=file:/dev/./urandom -jar -Duser.timezone=GMT+08 nf-flms-order.jar"
resources:
limits:
cpu: '1000m'
memory: 1Gi
requests:
cpu: "200m"
memory: "500Mi"
ports:
- containerPort: 8080
readinessProbe: # 就绪探针，不就绪则从负载均衡移除
tcpSocket:
port: 8080
initialDelaySeconds: 60
periodSeconds: 30
timeoutSeconds: 3
successThreshold: 1
failureThreshold: 2
livenessProbe: # 存活探针，不存活会重启
tcpSocket:
port: 8080
initialDelaySeconds: 60
periodSeconds: 30
timeoutSeconds: 3
successThreshold: 1
failureThreshold: 2
volumeMounts:
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
- name: data-image
mountPath: /data
- name: log
mountPath: /logs # 业务容器日志目录
- name: filebeat
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/filebeat_sidecar:7.17.6
imagePullPolicy: Always
volumeMounts:
- name: log
mountPath: /logm # 匹配多行日志
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
env:
- name: ENV
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: metadata.namespace
- name: PodIP
valueFrom:
fieldRef:
fieldPath: status.podIP
- name: Node
valueFrom:
fieldRef:
fieldPath: spec.nodeName
- name: PROJECT_NAME
value: "nf-flms-order"
- name: KAFKA_HOSTS
value: '"kafka-0.kafka-svc.logging:9092","kafka-1.kafka-svc.logging:9092","kafka-2.kafka-svc.logging:9092"'
volumes:
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
type: ""
- name: timezone
hostPath:
path: /etc/timezone
type: ""
- name: data-image
persistentVolumeClaim:
claimName: data-image
- name: log
emptyDir: {}
7.5.3 检查 KafkaTopic

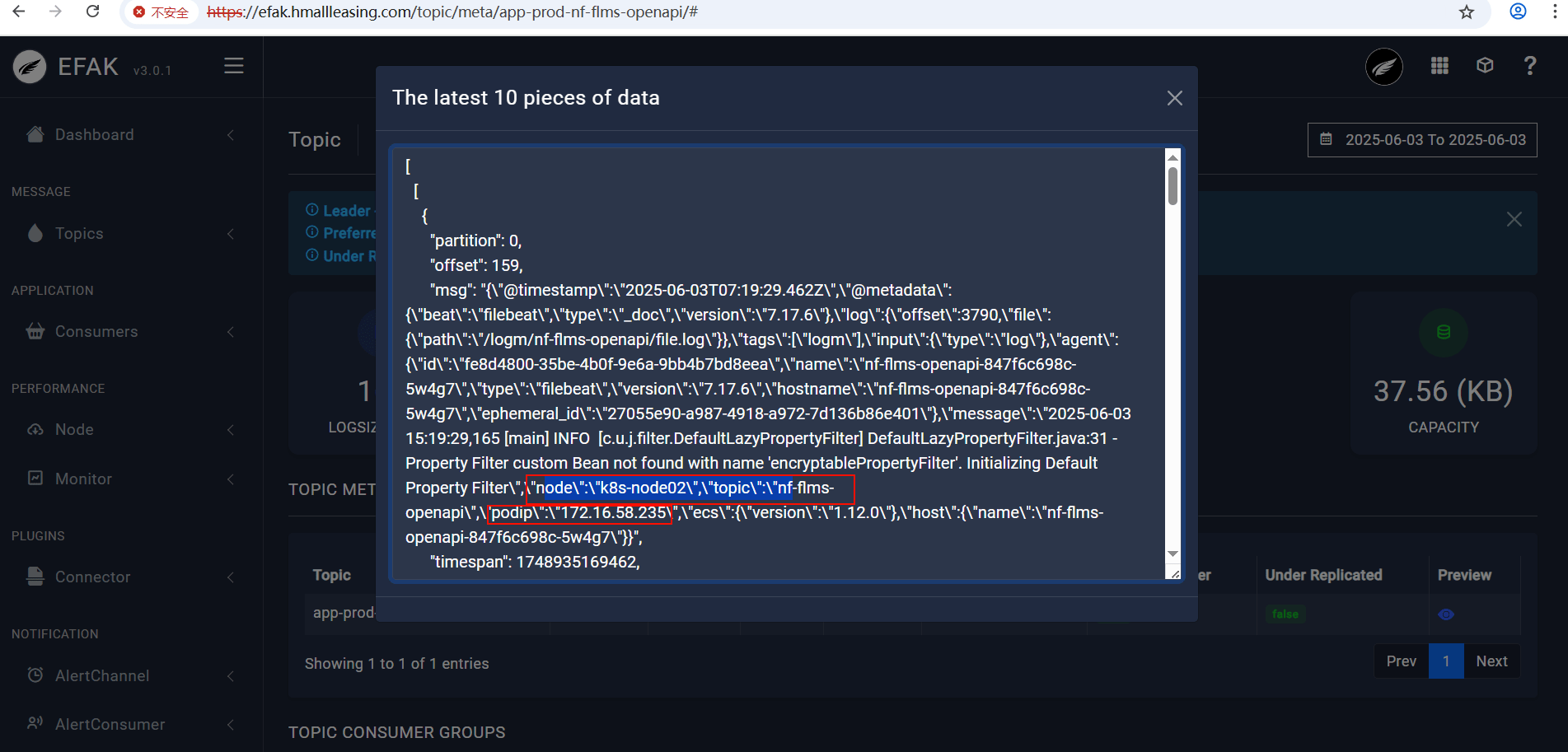

1、检查是否有对应的 topic
2、点击对应的 Preview，查看 topic 中的最新数据
# 7.6 nf-flms-statistics 日志收集
7.6.1 创建 nf-flms-statistics
# cat 03-nf-flms-statistics.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: nf-flms-statistics
namespace: prod
spec:
replicas: 2
selector:
matchLabels:
app: nf-flms-statistics
template:
metadata:
labels:
app: nf-flms-statistics
spec:
imagePullSecrets:
- name: harbor-admin
containers:
- name: nf-flms-statistics
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/nf-flms-statistics:v2.0
command:
- "/bin/sh"
- "-c"
- "java -Xms256m -Xmx1024m -Dspring.profiles.active=prd -Djava.security.egd=file:/dev/./urandom -jar -Duser.timezone=GMT+08 nf-flms-statistics.jar"
resources:
limits:
cpu: '1000m'
memory: 1Gi
requests:
cpu: "200m"
memory: "500Mi"
ports:
- containerPort: 8080
readinessProbe: # 就绪探针，不就绪则从负载均衡移除
tcpSocket:
port: 8080
initialDelaySeconds: 60
periodSeconds: 30
timeoutSeconds: 3
successThreshold: 1
failureThreshold: 2
livenessProbe: # 存活探针，不存活会重启
tcpSocket:
port: 8080
initialDelaySeconds: 60
periodSeconds: 30
timeoutSeconds: 3
successThreshold: 1
failureThreshold: 2
volumeMounts:
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
- name: log
mountPath: /logs # 业务容器日志目录
- name: filebeat
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/filebeat_sidecar:7.17.6
imagePullPolicy: Always
volumeMounts:
- name: log
mountPath: /logm # 匹配多行日志
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
env:
- name: ENV
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: metadata.namespace
- name: PodIP
valueFrom:
fieldRef:
fieldPath: status.podIP
- name: Node
valueFrom:
fieldRef:
fieldPath: spec.nodeName
- name: PROJECT_NAME
value: "nf-flms-statistics"
- name: KAFKA_HOSTS
value: '"kafka-0.kafka-svc.logging:9092","kafka-1.kafka-svc.logging:9092","kafka-2.kafka-svc.logging:9092"'
volumes:
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
type: ""
- name: timezone
hostPath:
path: /etc/timezone
type: ""
- name: log
emptyDir: {}
7.6.2 检查 KafkaTopic
1、检查是否有对应的 topic
2、点击对应的 Preview，查看 topic 中的最新数据
# 7.7 nf-flms-system 日志收集
7.7.1 创建 nf-flms-system
# cat 04-nf-flms-system.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: nf-flms-system
namespace: prod
spec:
replicas: 2
selector:
matchLabels:
app: nf-flms-system
template:
metadata:
labels:
app: nf-flms-system
spec:
imagePullSecrets:
- name: harbor-admin
containers:
- name: nf-flms-system
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/nf-flms-system:v2.0
command:
- "/bin/sh"
- "-c"
- "java -Xms256m -Xmx1024m -Dspring.profiles.active=prd -Djava.security.egd=file:/dev/./urandom -jar -Duser.timezone=GMT+08 nf-flms-system.jar"
resources:
limits:
cpu: '1000m'
memory: 1Gi
requests:
cpu: "200m"
memory: "500Mi"
ports:
- containerPort: 8080
livenessProbe:
tcpSocket:
port: 8080
initialDelaySeconds: 60
periodSeconds: 10
timeoutSeconds: 10
readinessProbe:
tcpSocket:
port: 8080
failureThreshold: 2
initialDelaySeconds: 60
periodSeconds: 10
timeoutSeconds: 10
volumeMounts:
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
- name: log
mountPath: /logs # 业务容器日志目录
- name: filebeat
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/filebeat_sidecar:7.17.6
imagePullPolicy: Always
volumeMounts:
- name: log
mountPath: /logm # 匹配多行日志
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
env:
- name: ENV
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: metadata.namespace
- name: PodIP
valueFrom:
fieldRef:
fieldPath: status.podIP
- name: Node
valueFrom:
fieldRef:
fieldPath: spec.nodeName
- name: PROJECT_NAME
value: "nf-flms-system"
- name: KAFKA_HOSTS
value: '"kafka-0.kafka-svc.logging:9092","kafka-1.kafka-svc.logging:9092","kafka-2.kafka-svc.logging:9092"'
volumes:
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
type: ""
- name: timezone
hostPath:
path: /etc/timezone
type: ""
- name: log
emptyDir: {}
7.7.2 检查 KafkaTopic
1、检查是否有对应的 topic
2、点击对应的 Preview，查看 topic 中的最新数据
# 7.8 nf-flms-openapi 日志收集
7.8.1 创建 nf-flms-openapi
# cat 06-nf-flms-openapi.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: nf-flms-openapi
namespace: prod
spec:
replicas: 2
selector:
matchLabels:
app: nf-flms-openapi
template:
metadata:
labels:
app: nf-flms-openapi
spec:
imagePullSecrets:
- name: harbor-admin
containers:
- name: nf-flms-openapi
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/nf-flms-openapi:v2.2
command:
- "/bin/sh"
- "-c"
- "java -Xms256m -Xmx1024m -Dspring.profiles.active=prd -Djava.security.egd=file:/dev/./urandom -jar -Duser.timezone=GMT+08 nf-flms-openapi.jar"
resources:
limits:
cpu: '1000m'
memory: 1Gi
requests:
cpu: "200m"
memory: "500Mi"
ports:
- containerPort: 8080
livenessProbe:
tcpSocket:
port: 8080
initialDelaySeconds: 60
periodSeconds: 10
timeoutSeconds: 10
readinessProbe:
tcpSocket:
port: 8080
failureThreshold: 2
initialDelaySeconds: 60
periodSeconds: 10
timeoutSeconds: 10
volumeMounts:
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
- name: log
mountPath: /logs # 业务容器日志目录
- name: filebeat
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/filebeat_sidecar:7.17.6
imagePullPolicy: Always
volumeMounts:
- name: log
mountPath: /logm # 匹配多行日志
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
env:
- name: ENV
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: metadata.namespace
- name: PodIP
valueFrom:
fieldRef:
fieldPath: status.podIP
- name: Node
valueFrom:
fieldRef:
fieldPath: spec.nodeName
- name: PROJECT_NAME
value: "nf-flms-openapi"
- name: KAFKA_HOSTS
value: '"kafka-0.kafka-svc.logging:9092","kafka-1.kafka-svc.logging:9092","kafka-2.kafka-svc.logging:9092"'
volumes:
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
type: ""
- name: timezone
hostPath:
path: /etc/timezone
type: ""
- name: log
emptyDir: {}
7.8.2 检查 KafkaTopic
1、检查是否有对应的 topic
2、点击对应的 Preview，查看 topic 中的最新数据
# 7.9 nf-flms-ui 日志收集
7.9.1 准备 Nginx 配置文件
# cat prod.hmallleasing.com.conf
server {
listen 80;
server_name prod.hmallleasing.com;
root /code/prod;
location / {
index index.html index.htm;
}
}
server {
listen 80;
server_name prod-api.hmallleasing.com;
location / {
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header REMOTE-HOST $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_pass http://gateway-svc.prod.svc.cluster.local:8080;
}
}
7.9.2 创建 ConfigMap
kubectl create configmap nf-flms-ui-conf --from-file=./prod.hmallleasing.com.conf -n prod
7.9.3 创建 nf-flms-ui
[root@k8s-master01 06-service-all]# cat 07-ui-deploy-ingress.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: nf-flms-ui
namespace: prod
spec:
replicas: 1
selector:
matchLabels:
app: nf-flms-ui
template:
metadata:
labels:
app: nf-flms-ui
spec:
imagePullSecrets:
- name: harbor-admin
containers:
- name: nf-flms-ui
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/nf-flms-ui:v1.0
ports:
- containerPort: 80
resources:
limits:
cpu: '1000m'
memory: 1Gi
requests:
cpu: "200m"
memory: "500Mi"
readinessProbe: # 就绪探针，不就绪则从负载均衡移除
tcpSocket:
port: 80
initialDelaySeconds: 60
periodSeconds: 10
timeoutSeconds: 10
livenessProbe: # 存活探针，不存活会重启
tcpSocket:
port: 80
initialDelaySeconds: 60
periodSeconds: 10
timeoutSeconds: 10
volumeMounts:
- name: ngxconfs
mountPath: /etc/nginx/conf.d/
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
- name: log
mountPath: /var/log/nginx/ # 业务容器日志目录
- name: filebeat
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/filebeat_sidecar:7.17.6
imagePullPolicy: Always
volumeMounts:
- name: log
mountPath: /logu # 匹配多行日志
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
env:
- name: ENV
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: metadata.namespace
- name: PodIP
valueFrom:
fieldRef:
fieldPath: status.podIP
- name: Node
valueFrom:
fieldRef:
fieldPath: spec.nodeName
- name: PROJECT_NAME
value: "nf-flms-ui"
- name: KAFKA_HOSTS
value: '"kafka-0.kafka-svc.logging:9092","kafka-1.kafka-svc.logging:9092","kafka-2.kafka-svc.logging:9092"'
volumes:
- name: ngxconfs
configMap:
name: nf-flms-ui-conf
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
type: ""
- name: timezone
hostPath:
path: /etc/timezone
type: ""
- name: log
emptyDir: {}
---
apiVersion: v1
kind: Service
metadata:
name: nf-flms-ui-svc
namespace: prod
spec:
selector:
app: nf-flms-ui
ports:
- port: 80
targetPort: 80
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: nf-flms-ui-ingress
namespace: prod
annotations:
nginx.ingress.kubernetes.io/ssl-redirect: "false" #禁用https强制跳转
spec:
ingressClassName: "nginx"
rules:
- host: "prod.hmallleasing.com"
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: nf-flms-ui-svc
port:
number: 80
tls: #https
- hosts:
- prod.hmallleasing.com
secretName: "prod-api.hmallleasig.com" #配置默认证书可不添加secretName
7.9.2 检查 KafkaTopic

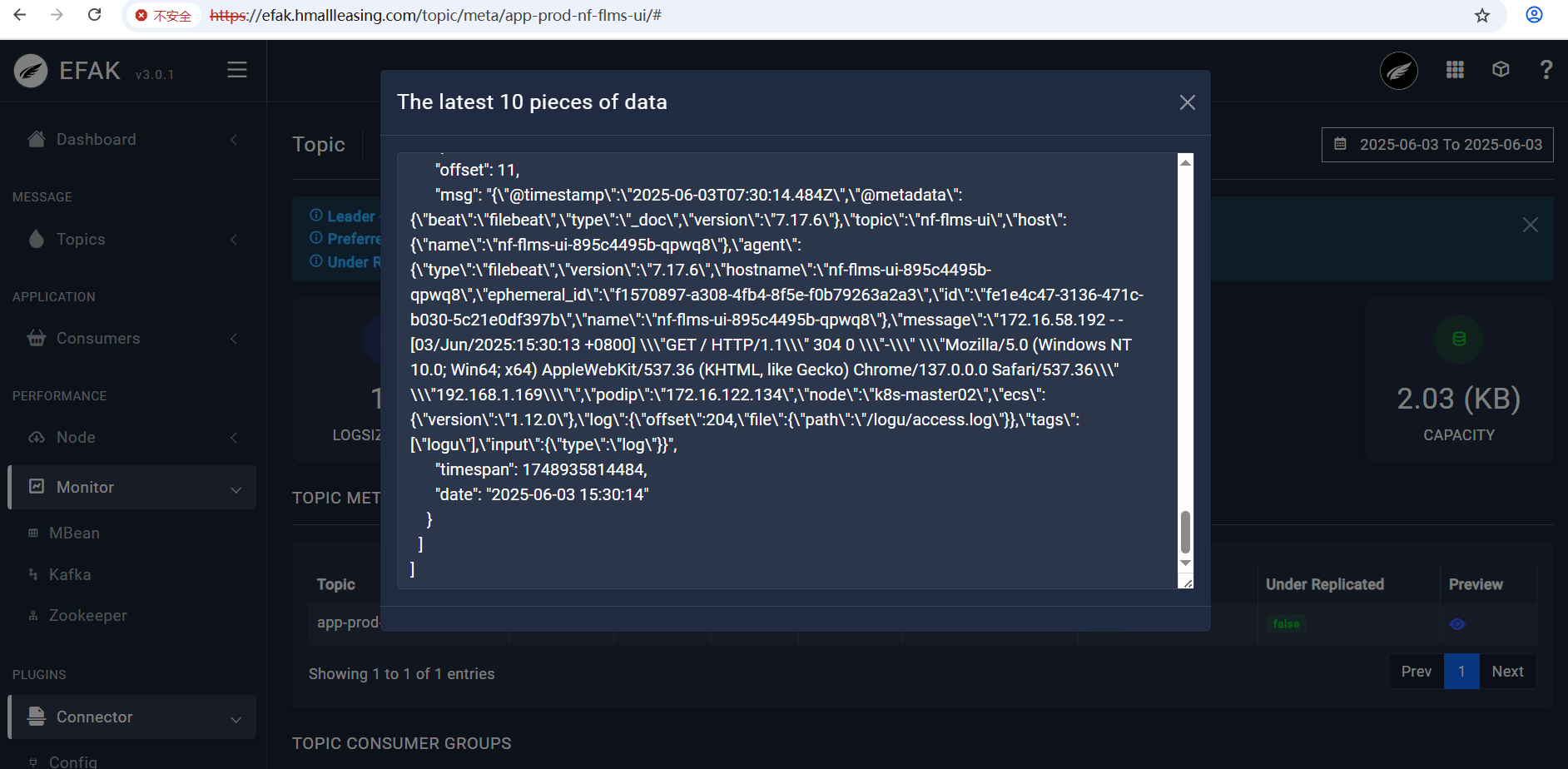

1、检查是否有对应的 topic
2、点击对应的 Preview，查看 topic 中的最新数据
# 八、交付生产环境 Logstash
# 8.1 拉取镜像
# docker pull docker.elastic.co/logstash/logstash-oss:7.17.6
# docker tag docker.elastic.co/logstash/logstash-oss:7.17.6 registry.cn-hangzhou.aliyuncs.com/kubernetes_public/logstash-oss:7.17.6
# docker push registry.cn-hangzhou.aliyuncs.com/kubernetes_public/logstash-oss:7.17.6
# 8.2 编写 logstash 配置
[root@k8s-master01 conf]# cat logstash-prod.conf
input {
kafka {
bootstrap_servers => "kafka-0.kafka-svc:9092,kafka-1.kafka-svc:9092,kafka-2.kafka-svc:9092"
group_id => "logstash-prod" # 消费者组名称
consumer_threads => "3" # 理想情况下，配置与分区数一样多的线程，实现均衡
topics_pattern => "app-prod-.*" # 通过正则表达式匹配要订阅的主题
}
}
filter {
json {
source => "message"
}
}
output {
stdout {
codec => rubydebug
}
elasticsearch {
hosts => ["es-data-0.es-svc:9200","es-data-1.es-svc:9200"]
index => "app-prod-%{+YYYY.MM.dd}"
template_overwrite => true
}
}
# 8.3 创建生产环境 configmap
kubectl create configmap logstash-prod-conf --from-file=logstash.conf=conf/logstash-prod.conf -n logging
# 8.4 创建生产环境 Logstash
1、创建 logstash-svc
# cat 01-logstash-svc.yaml
apiVersion: v1
kind: Service
metadata:
name: logstash-svc
namespace: logging
spec:
clusterIP: None
selector:
app: logstash
ports:
- port: 9600
targetPort: 9600
2、创建 logstash-StatefulSet
# cat 05-logstash-prod-sts.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: logstash-prod
namespace: logging
spec:
serviceName: "logstash-svc" # 使用此前创建的svc，则无需重复创建
replicas: 1
selector:
matchLabels:
app: logstash
env: prod
template:
metadata:
labels:
app: logstash
env: prod
spec:
imagePullSecrets:
- name: harbor-admin
containers:
- name: logstash
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/logstash-oss:7.17.6
args: ["-f","config/logstash.conf"] # 启动时指定加载的配置文件
resources:
limits:
memory: 1024Mi
env:
- name: PIPELINE_WORKERS
value: "2"
- name: PIPELINE_BATCH_SIZE
value: "10000"
lifecycle:
postStart: # 设定JVM
exec:
command:
- "/bin/bash"
- "-c"
- "sed -i -e '/^-Xms/c-Xms1024m' -e '/^-Xmx/c-Xmx1024m' /usr/share/logstash/config/jvm.options"
volumeMounts:
- name: data # 持久化数据目录
mountPath: /usr/share/logstash/data
- name: conf
mountPath: /usr/share/logstash/config/logstash.conf
subPath: logstash.conf
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
volumes:
- name: conf
configMap:
name: logstash-prod-conf
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
type: ""
- name: timezone
hostPath:
path: /etc/timezone
type: ""
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes: ["ReadWriteMany"]
storageClassName: "nfs-storage"
resources:
requests:
storage: 5Gi
# 8.5 更新资源清单
[root@k8s-master01 08-logstash]# kubectl apply -f 01-logstash-svc.yaml
[root@k8s-master01 08-logstash]# kubectl apply -f 05-logstash-prod-sts.yaml

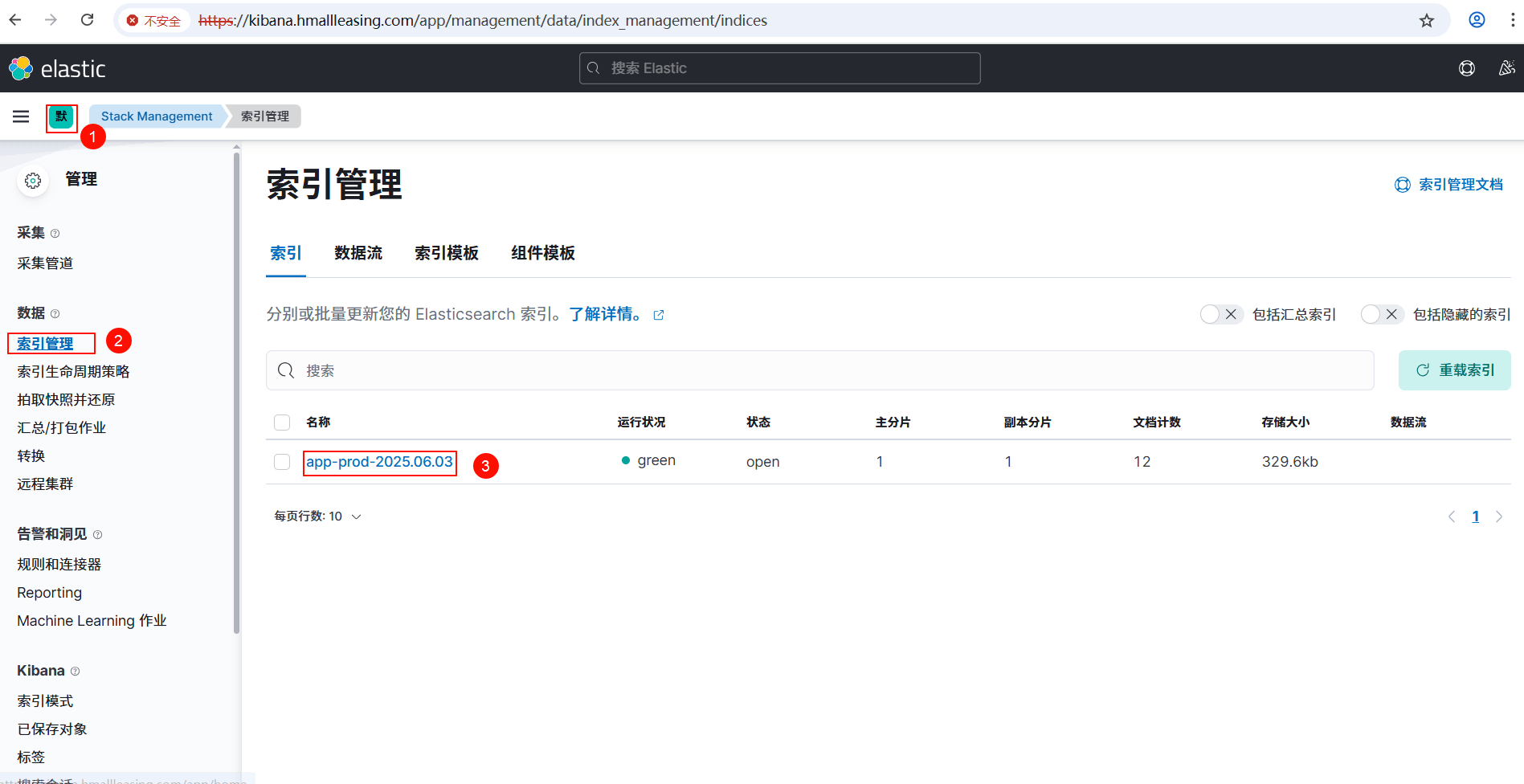

# 8.6 检查 ES 生产环境索引
# 九、交付测试环境 Logstash
# 9.1 拉取镜像
# docker pull docker.elastic.co/logstash/logstash-oss:7.17.6
# docker tag docker.elastic.co/logstash/logstash-oss:7.17.6 registry.cn-hangzhou.aliyuncs.com/kubernetes_public/logstash-oss:7.17.6
# docker push registry.cn-hangzhou.aliyuncs.com/kubernetes_public/logstash-oss:7.17.6
# 9.2 编写 logstash 配置
[root@k8s-master01 08-logstash]# cat conf/logstash-test.conf
input {
kafka {
bootstrap_servers => "kafka-0.kafka-svc:9092,kafka-1.kafka-svc:9092,kafka-2.kafka-svc:9092"
group_id => "logstash-test" # 消费者组名称
consumer_threads => "3" # 理想情况下，配置与分区数一样多的线程，实现均衡
topics_pattern => "app-test-.*" # 通过正则表达式匹配要订阅的主题
}
}
filter {
json {
source => "message"
}
}
output {
stdout {
codec => rubydebug
}
elasticsearch {
hosts => ["es-data-0.es-svc:9200","es-data-1.es-svc:9200"]
index => "app-test-%{+YYYY.MM.dd}"
template_overwrite => true
}
}
# 9.3 创建测试环境 configmap
kubectl create configmap logstash-test-conf --from-file=logstash.conf=conf/logstash-test.conf -n logging
# 9.4 创建测试环境 Logstash
1、创建 logstash-svc
# cat 01-logstash-svc.yaml
apiVersion: v1
kind: Service
metadata:
name: logstash-svc
namespace: logging
spec:
clusterIP: None
selector:
app: logstash
ports:
- port: 9600
targetPort: 9600
2、创建 logstash-StatefulSet
[root@k8s-master01 08-logstash]# cat 03-logstash-test-sts.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: logstash-test
namespace: logging
spec:
serviceName: "logstash-svc" # 使用此前创建的svc，则无需重复创建
replicas: 1
selector:
matchLabels:
app: logstash
env: test
template:
metadata:
labels:
app: logstash
env: test
spec:
imagePullSecrets:
- name: harbor-admin
containers:
- name: logstash
image: registry.cn-hangzhou.aliyuncs.com/kubernetes_public/logstash-oss:7.17.6
args: ["-f","config/logstash.conf"] # 启动时指定加载的配置文件
resources:
limits:
memory: 1024Mi
env:
- name: PIPELINE_WORKERS
value: "2"
- name: PIPELINE_BATCH_SIZE
value: "10000"
lifecycle:
postStart: # 设定JVM
exec:
command:
- "/bin/bash"
- "-c"
- "sed -i -e '/^-Xms/c-Xms1024m' -e '/^-Xmx/c-Xmx1024m' /usr/share/logstash/config/jvm.options"
volumeMounts:
- name: data # 持久化数据目录
mountPath: /usr/share/logstash/data
- name: conf
mountPath: /usr/share/logstash/config/logstash.conf
subPath: logstash.conf
- name: tz-config
mountPath: /usr/share/zoneinfo/Asia/Shanghai
- name: tz-config
mountPath: /etc/localtime
- name: timezone
mountPath: /etc/timezone
volumes:
- name: conf
configMap:
name: logstash-test-conf
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
type: ""
- name: timezone
hostPath:
path: /etc/timezone
type: ""
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes: ["ReadWriteMany"]
storageClassName: "nfs-storage"
resources:
requests:
storage: 5Gi
# 9.5 更新资源清单
[root@k8s-master01 08-logstash]# kubectl apply -f 01-logstash-svc.yaml
[root@k8s-master01 08-logstash]# kubectl apply -f 03-logstash-test-sts.yaml
# 9.6 检查 ES 测试环境索引
# 十、Kibana 数据展示

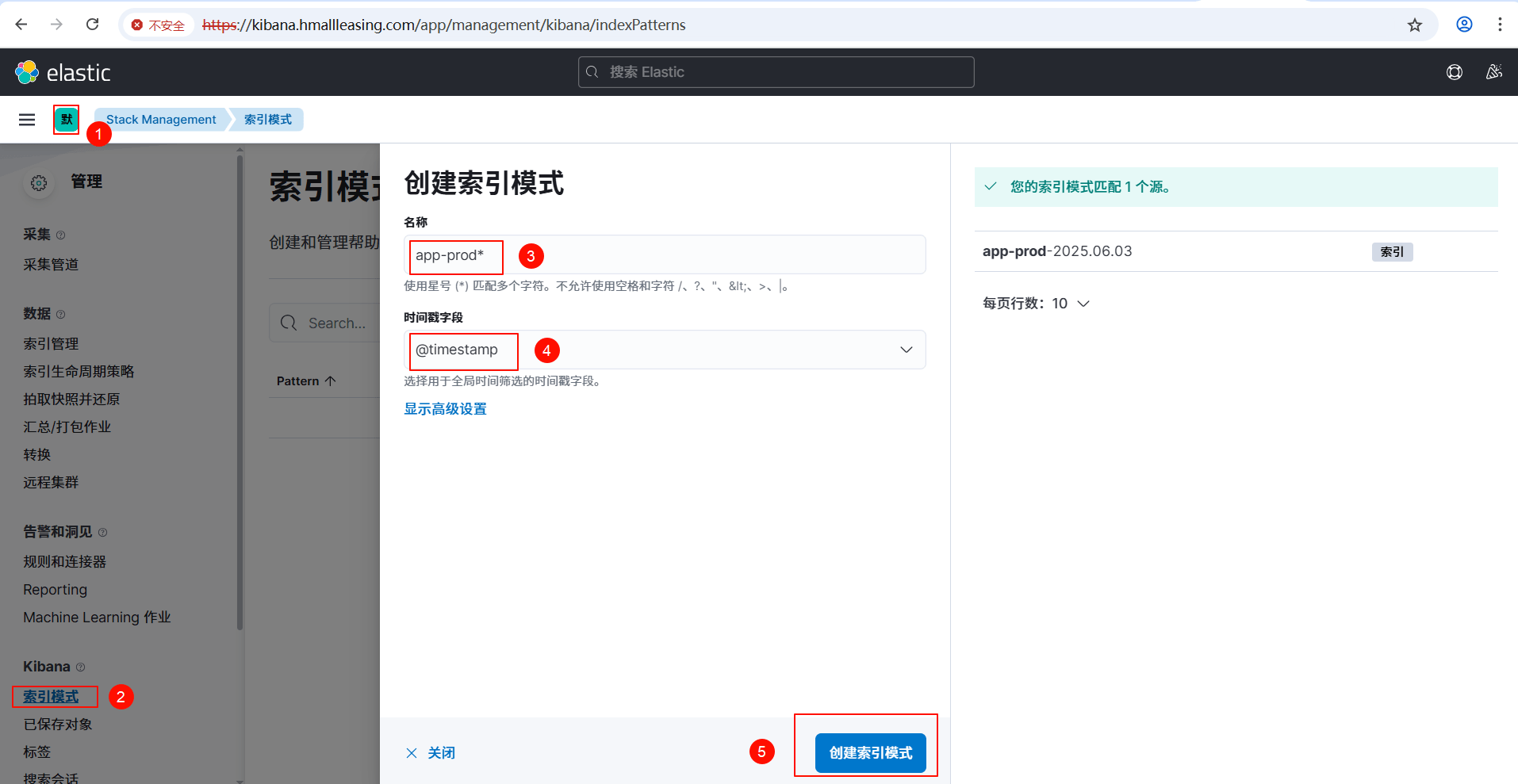

# 10.1 添加生产环境索引

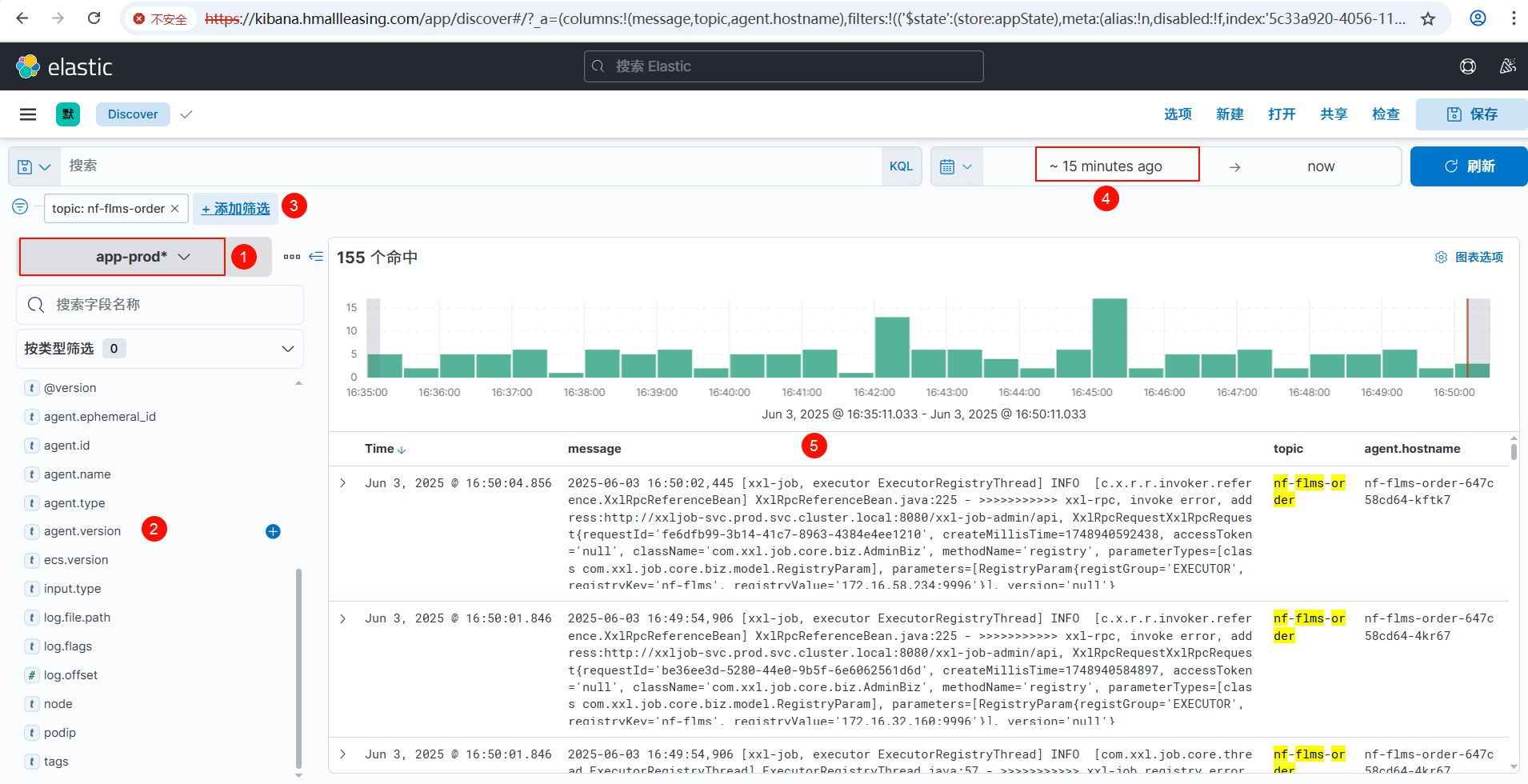

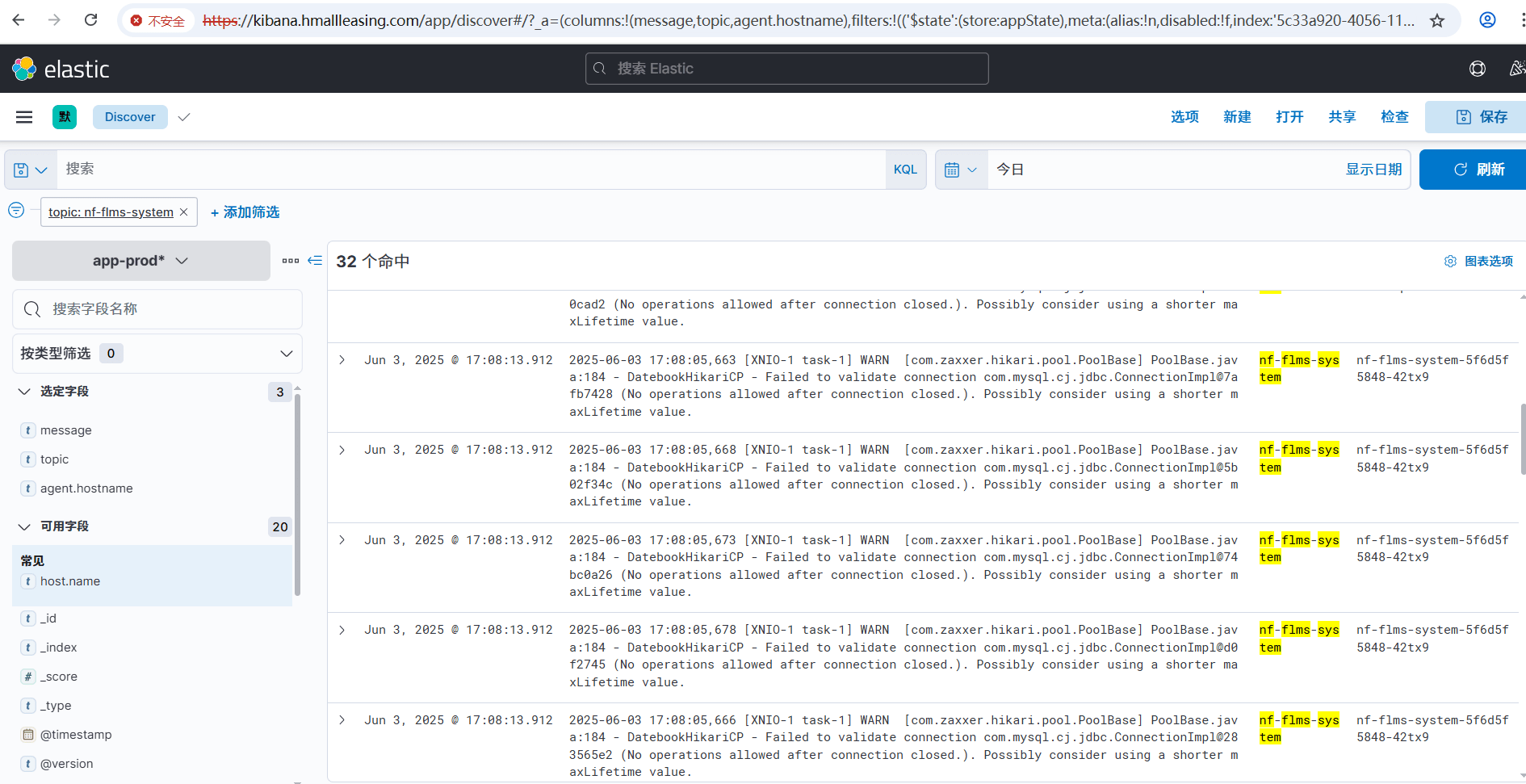

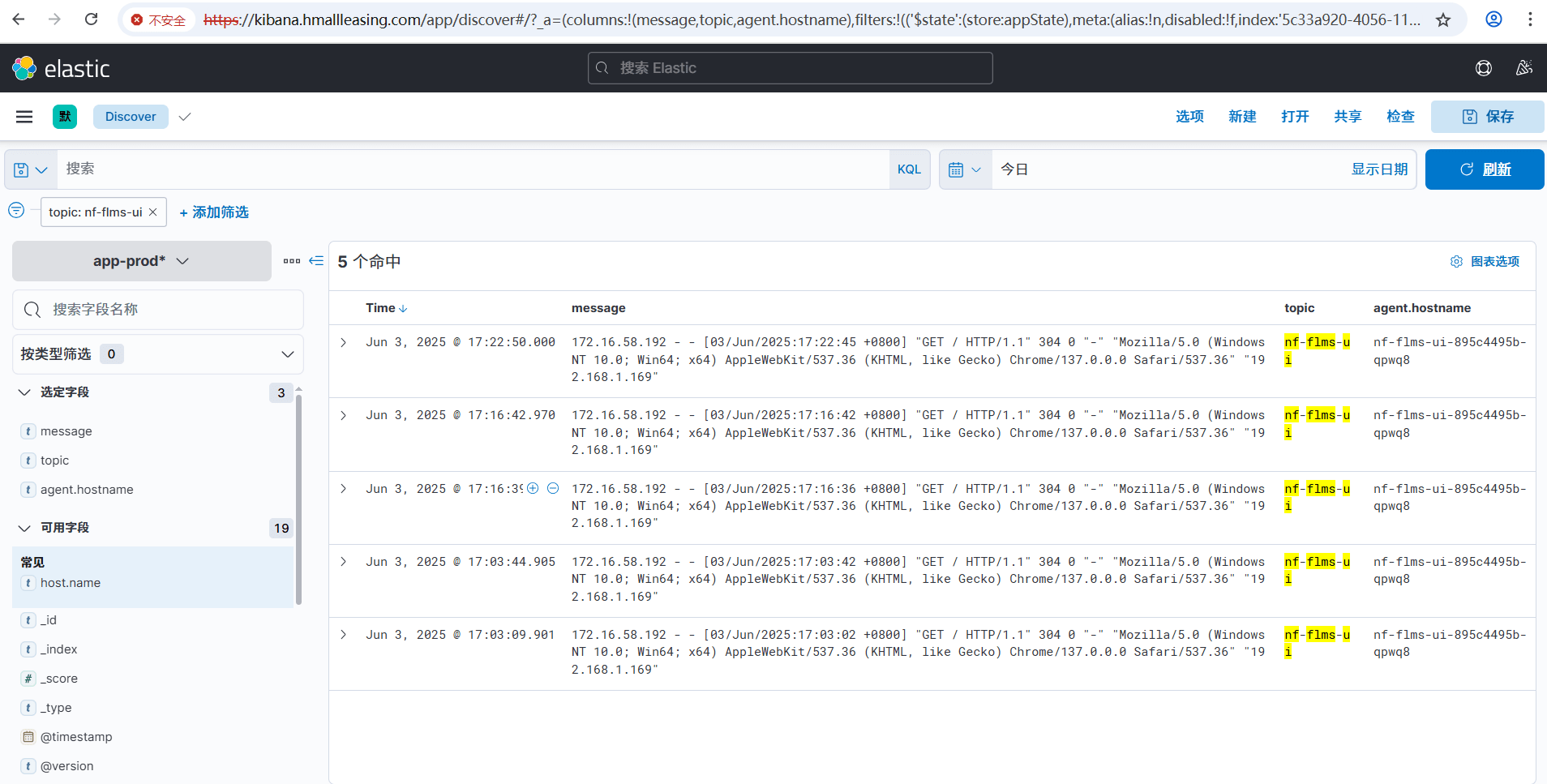

# 10.2 查看生产环境数据
kibana->Discover
①点击开发环境索引 ->②选择需要查看的字段 ->③进行 filter 筛选项目 ->④选择对应时间段
